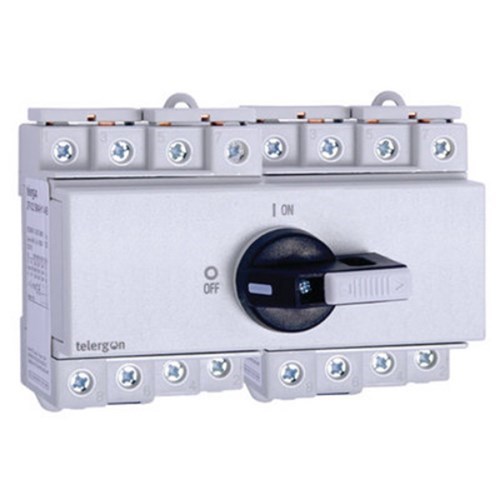

Telergon ZFV32X2 DC Isolator 32 A 1000 V 8-P DIN Mount

Product Code: ZFV32X2

  • 80 A rated current for robust performance
  • Supports up to 1000 V voltage
  • Compact width of 96 mm, DIN mountable
  • Complies with EN60947.3 & UL 508 standards
  • Operates in -40 to 45°C temperature range
In Stock Low Stock Out Of Stock Please See Attributes
1

Specifications

General

Product Type
DC photovoltaic isolator
Brand
TELERGON
Series
ZFV
Application
PV array isolation and DC load-break switching

Electrical

Rated Current
32 A
Rated Voltage
1000 V DC (Ui; up to 1500 V DC pollution degree II)
Air Thermal Current
32 A

Mechanical

Cable Entry
4–16 mm² terminal capacity
Padlockable
Yes; direct-mounted padlockable handle

Dimensions & Physical Data

Depth
80 mm
Height
108 mm
Weight
0.4 kg
Width
96 mm

Environmental

IP Rating
IP20 terminals

Safety, Standards & Compliance

Standards
EN/IEC 60947-3; VDE 0660; UL 508 File E332938; GB 14048.3
