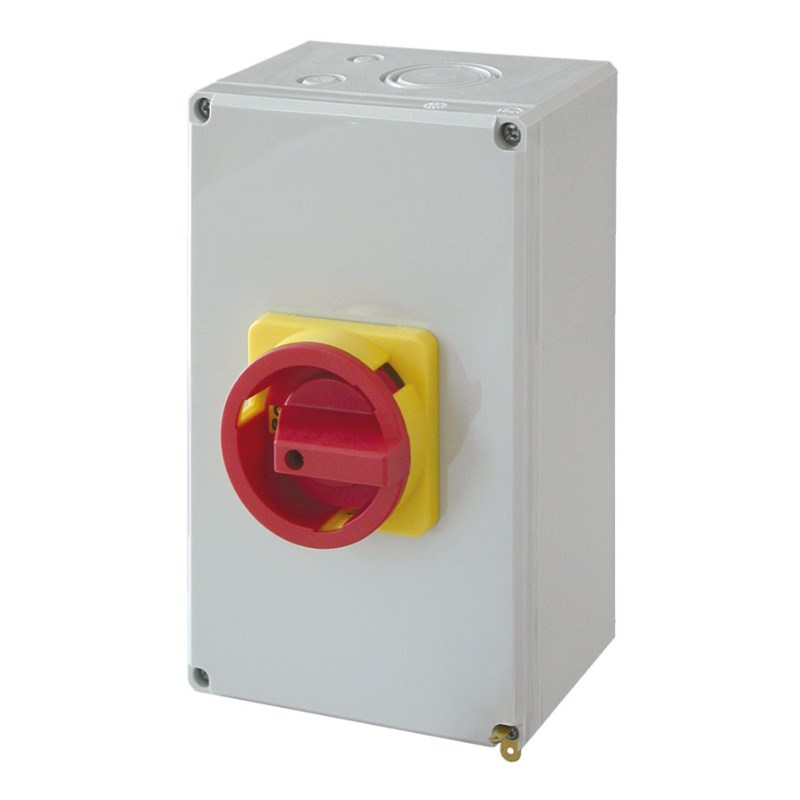

Telergon ZBK633P/E Enclosed Modualar Switch Disconnector 63A 3-P Plastic 18.5 kW IP65

Product Code: ZBK633P/E

  • Enclosed load break switch, 63 A capacity
  • High protection with IP65 rating
  • Durable plastic with included handle
  • Supports up to 690 V rated voltage
  • Short circuit current withstand of 10 kA
In Stock Low Stock Out Of Stock Please See Attributes
1

Specifications

General

Product Type
Enclosed Load Break Switch
Brand
TELERGON
Series
ZBK
Application
Safety isolation and switch-disconnector applications

Electrical

Rated Current (In)
63A
Rated Voltage (Ur)
690V AC
Air Thermal Current
63A

Mechanical

Cable Entry
Ø40.5/32.5 + Ø16.5 + Ø12.5 mm knockouts
Colour
Grey enclosure / red-yellow handle
Material
Plastic enclosure
Padlockable
Yes

Dimensions & Physical Data

Depth
86mm
Height
200mm
Width
140mm

Environmental

IP Rating
IP65

Documents

IPD Product Catalogue V17
