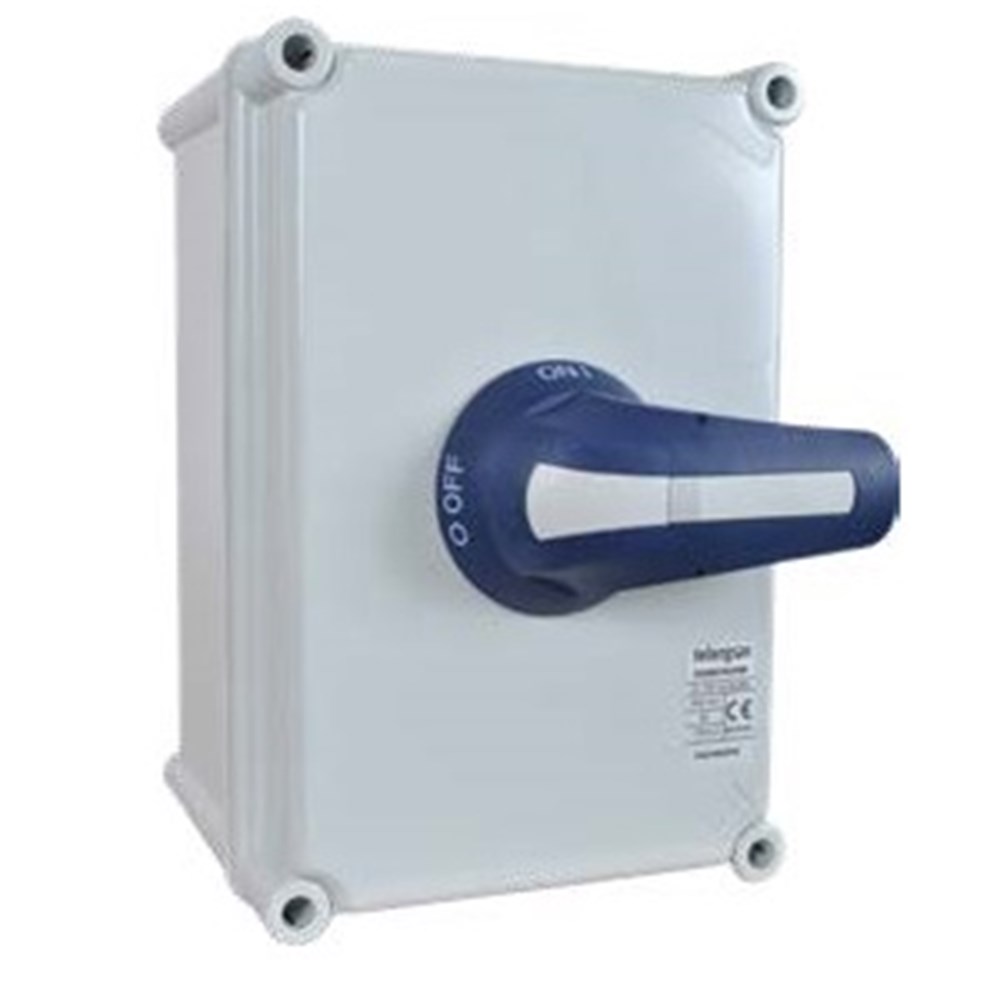

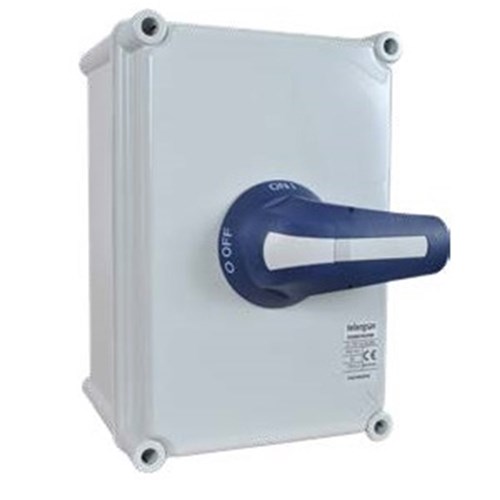

Telergon TLB1254P/E Enclosed Load Break Switch 125A 4-P Reinforced Polyester 45 kW IP65 270mm H x 180mm W x 170mm D

Product Code: TLB1254P/E

  • Enclosed load break switch, 125 A capacity
  • Compact size: 180x270x170 mm
  • IP65 protection for harsh environments
  • Durable reinforced polyester construction
  • Supports 50 sq-mm cable cross section
In Stock Low Stock Out Of Stock Please See Attributes
1

Specifications

Main

Brand
TELERGON

Electrical

No. of Poles (Total)
4
Rated Current
125 A
Rated Power
45 kW
Rated Voltage
690 V AC

Mechanical

Cable Cross Section
50 mm²
Handle Type
Padlockable handle
Material
Reinforced polyester

Dimensions

Depth
170 mm
Height
270 mm
Width
180 mm

Environmental

IP Rating
IP65

Standards and Approvals

Standards and Approvals
IEC 60947-3

Documents

IPD Product Catalogue V17
