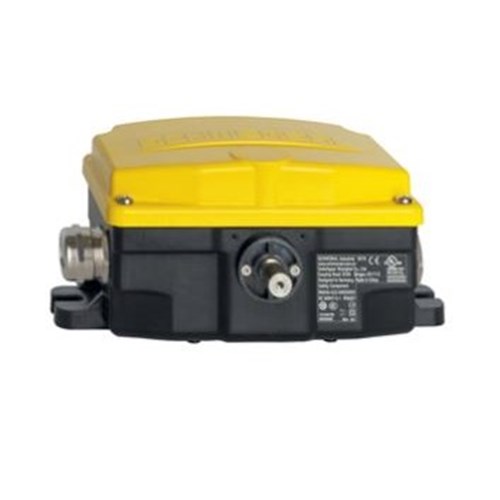

Schmersal 153039998 Belt Allignment Switch

Product Code: 153039998

In Stock Low Stock Out Of Stock Please See Attributes
1

Specifications

General

Product Type
Position Switch
Series
BS655

Electrical

Rated Impulse Withstand Voltage (Uimp)
4 kV
Rated Insulation Voltage (Ui)
300 V
Switching Principle
Snap action
Utilization Category
AC-15 230 VAC / 3 A
Contact Configuration
3 NC + 3 NO
Mechanical Life
1,000,000 operations
Thermal Test Current
6:00 AM

Mechanical

Cable Entry
Screw terminals; 2 x M25 cable entries
Housing Material
Grey cast iron, painted
Actuator / Operating Element
Lever

Environmental

IP Rating
IP66 / IP67
Ambient Temperature
-40 ... +70 °C

Safety, Standards & Compliance

Standards and Approvals
EN IEC 60947-5-1

Documents

IPD Product Catalogue V17
