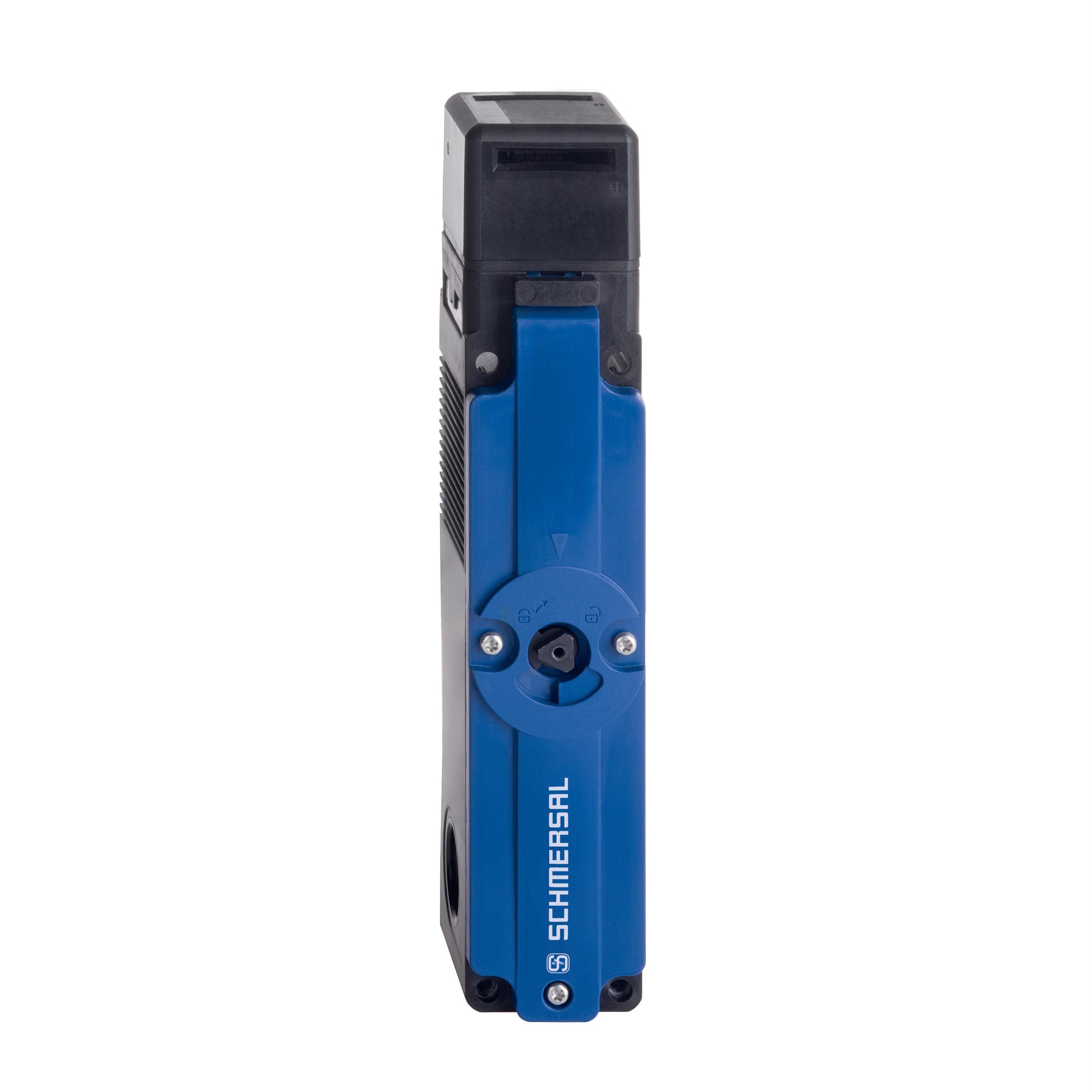

Schmersal 153032124 Solenid Interlock Switch 230VAC NO+NC

Product Code: 153032124

  • Durable thermoplastic, polyamide housing
  • High protection with IP67 rating
  • Long-lasting 1 million mechanical cycles
  • Certified by TUV and cULus standards
  • Operates efficiently at up to 55°C
In Stock Low Stock Out Of Stock Please See Attributes
1

Specifications

General

Product Type
Solenoid Interlock Switch
Brand
Schmersal
Series
AZM 150

Electrical

No. of N/C Contacts
3
No. of N/O Contacts
1
Rated Current (In)
0.208333
Rated Voltage (Ur)
24 V DC
Terminal Type
Screw terminals

Mechanical

Cable Entry
3 x M20 x 1.5
Guard Locking Force
1,500 N
Housing Material
Plastic, glass-fibre reinforced thermoplastic, self-extinguishing

Dimensions & Physical Data

Depth
48 mm
Height
204 mm
Weight
590 g
Width
40 mm

Environmental

Operating Temperature
-25 to 55 °C
IP Rating
IP67; IP65

Documents

IPD Product Catalogue V17
