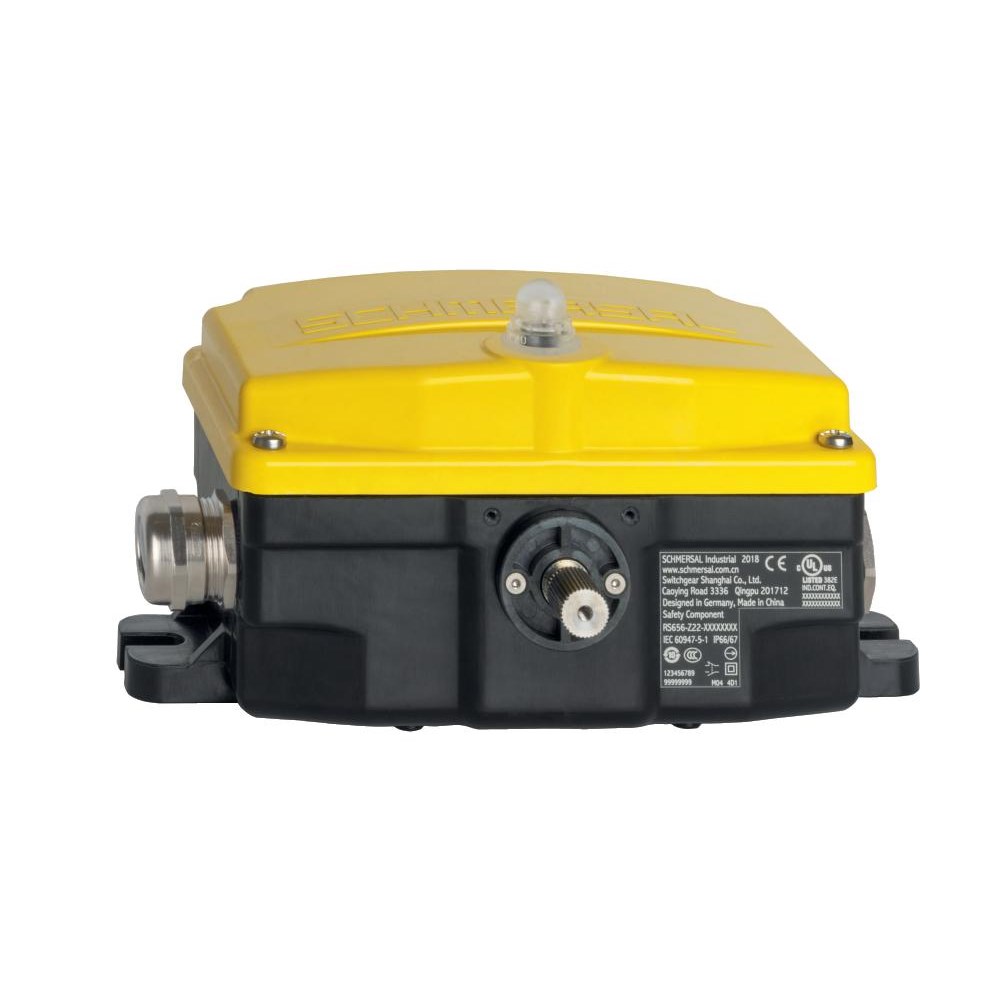

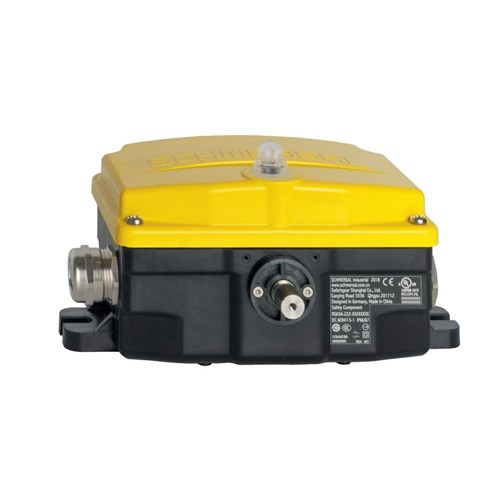

Schmersal 153031642 Position Switch 230VAC, 24VDC

Product Code: 153031642

  • Dual voltage: 230 VAC, 24 VDC
  • Durable with 1M mechanical cycles
  • Robust grey cast iron housing
  • High protection: IP66 rated
  • Complies with EN IEC & ISO standards
In Stock Low Stock Out Of Stock Please See Attributes
1

Specifications

General

Product Type
Position Switch (Heavy - Duty, Platform Concept, With Indicator Lamp)
Brand
Schmersal
Series
BS655

Electrical

No. of N/C Contacts
2
No. of N/O Contacts
2
Rated Current (In)
3A, 3A
Rated Voltage (Ur)
230V AC, 24V DC
Terminal Type
Screw terminals

Mechanical

Actuator Type
Actuator/lever ordered separately (base switch, no lever fitted); fitted with red 115 VAC indicator lamp
Housing Material
Grey cast iron, painted

Dimensions & Physical Data

Weight
6.07kg

Environmental

Operating Temperature
-25°C to 70°C
IP Rating
IP66, IP67

Documents

IPD Product Catalogue V17
