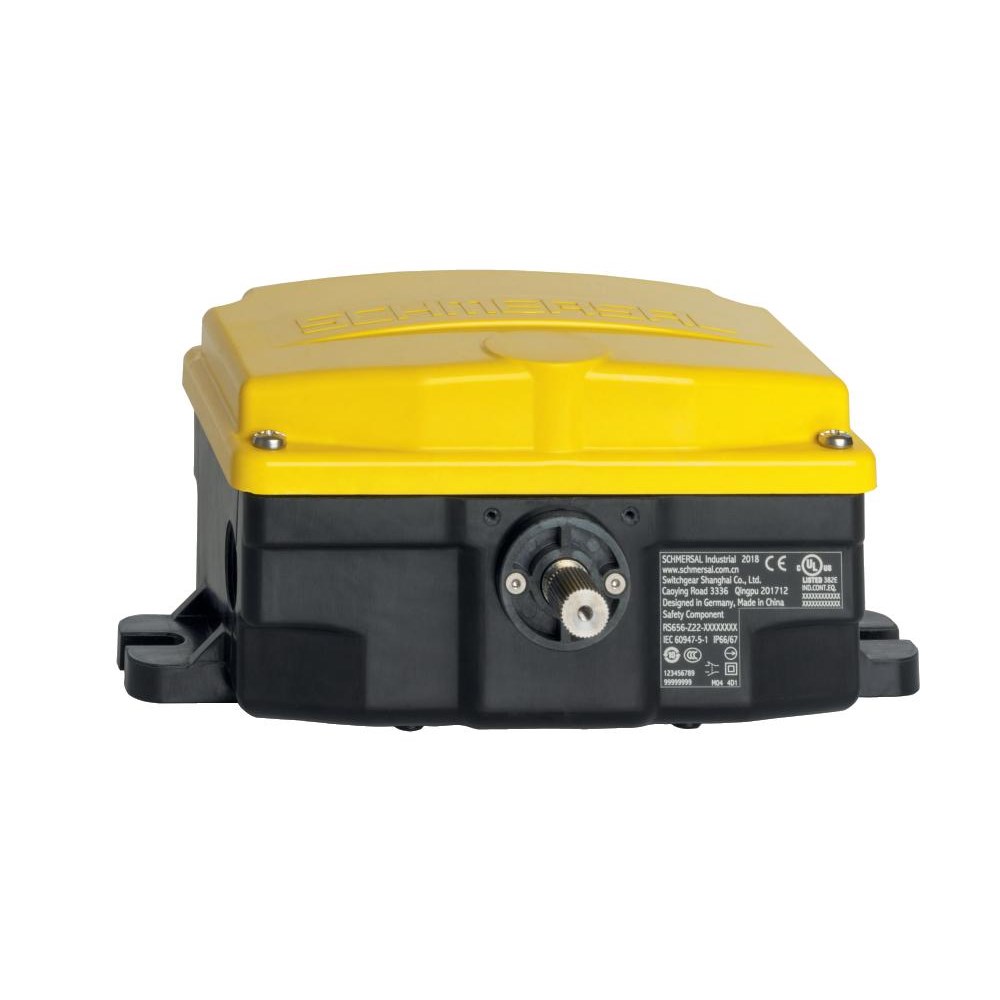

Schmersal 153031622 Position Switch 230VAC, 24VDC

Product Code: 153031622

  • Dual voltage: 230 VAC, 24 VDC
  • High durability: 1 million cycles
  • Robust IP66 protection
  • Wide temp range: -40 to 70°C
  • Complies with EN IEC & ISO standards
In Stock Low Stock Out Of Stock Please See Attributes
1

Specifications

General

Product Type
Position Switch (Heavy - Duty, Platform Concept)
Brand
Schmersal
Series
BS656

Electrical

No. of N/C Contacts
2
No. of N/O Contacts
2
Rated Current (In)
3A, 3A
Rated Voltage (Ur)
230V AC, 24V DC
Terminal Type
Cage clamp

Mechanical

Actuator Type
Actuator/lever ordered separately (base switch, no lever fitted)
Housing Material
Thermosetting resin (plastic)

Dimensions & Physical Data

Weight
1.657kg

Environmental

Operating Temperature
-40°C to 70°C
IP Rating
IP66, IP67

Documents

IPD Product Catalogue V17
