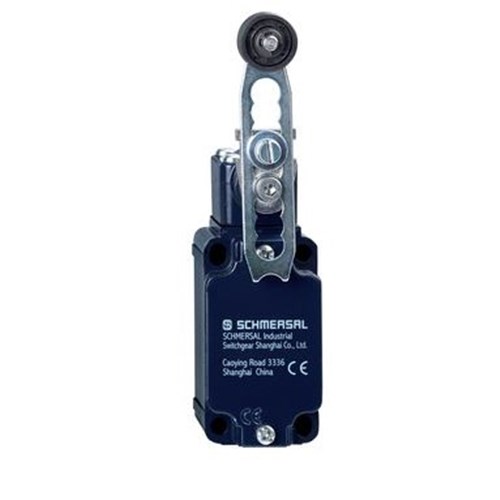

Schmersal 151215109 Position Switch Roller Lever Die Cast Light Alloy

Product Code: 151215109

  • Die cast light alloy housing for durability
  • IP65/IP67 rated for dust and water protection
  • Complies with BG-GS-ET-15, ENIEC 60947-5-1 standards
  • Roller lever actuator for precise control
  • M20 x 1.5 screw terminals for secure connections
In Stock Low Stock Out Of Stock Please See Attributes
1

Specifications

General

Product Type
Position Switch
Brand
Schmersal
Series
M 330

Electrical

No. of N/C Contacts
3
Rated Current (In)
4A (AC-15)
Rated Voltage (Ur)
230V AC (AC-15)
Terminal Type
Screw
Thermal Test Current
10A

Mechanical

Actuator Type
Roller lever
Contact Material
Silver
Housing Material
Light alloy die-casting

Dimensions & Physical Data

Depth
57.3mm
Height
171.5mm
Weight
0.3kg
Width
40.5mm

Environmental

IP Rating
IP65, IP67
Ambient Temperature
-40°C to 80°C
