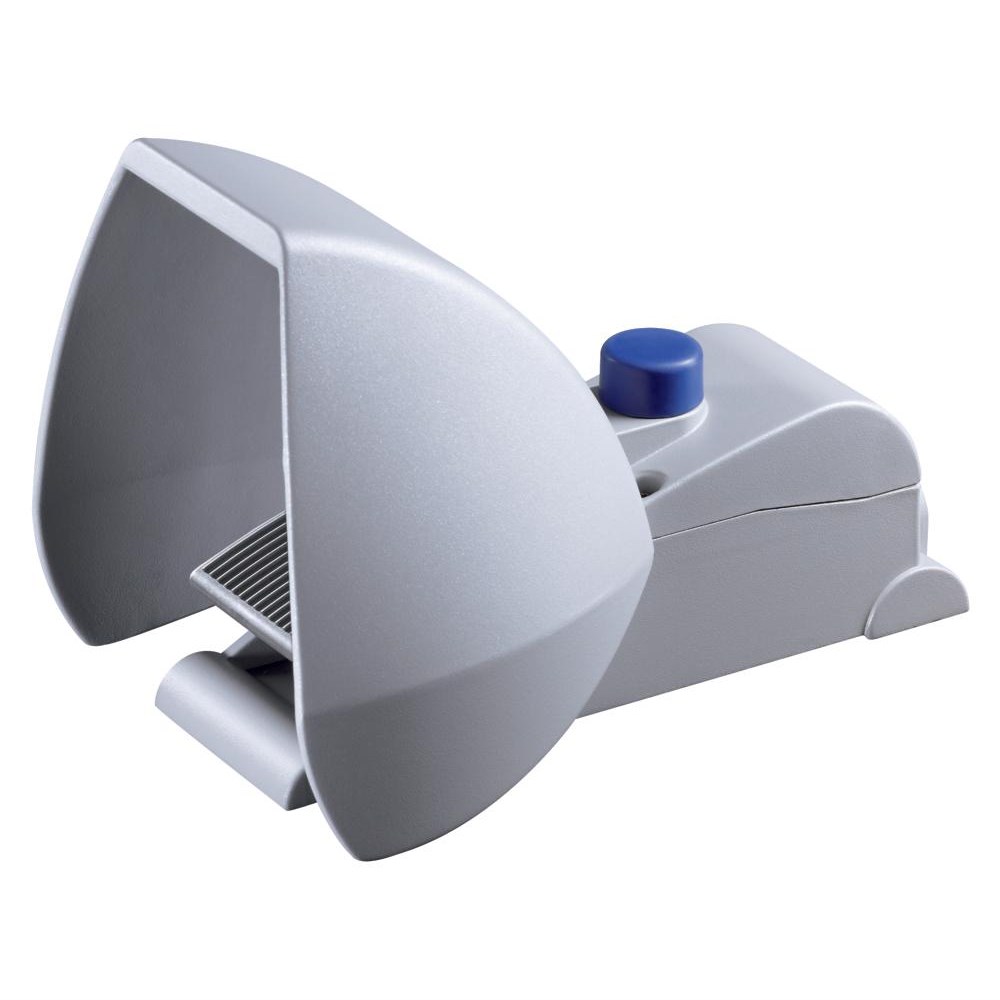

Schmersal 151192630 Foot Switch 1NO-1NC 230VAC 24VDC 4A 1A

Product Code: 151192630

  • Rated for 230 VAC & 24 VDC applications
  • Durable aluminium housing, IP65 protection
  • Complies with BG-GS-ET-15 & ENISO standards
  • Features 1NO+1NC slow action contacts
  • Long mechanical life of 1 million operations
In Stock Low Stock Out Of Stock Please See Attributes
1

Specifications

General

Product Type
Foot Switch
Brand
Schmersal
Series
232

Electrical

No. of N/C Contacts
2
No. of N/O Contacts
2
Rated Current (In)
4A AC, 1A DC
Rated Voltage (Ur)
230V AC, 24V DC

Mechanical

Actuator Type
Pedal
Housing Colour
White aluminum
Housing Material
Aluminium

Dimensions & Physical Data

Depth
274mm
Height
189mm
Weight
2.18kg
Width
170mm

Environmental

Operating Temperature
-25°C to 70°C
IP Rating
IP65

Documents

IPD Product Catalogue V17
