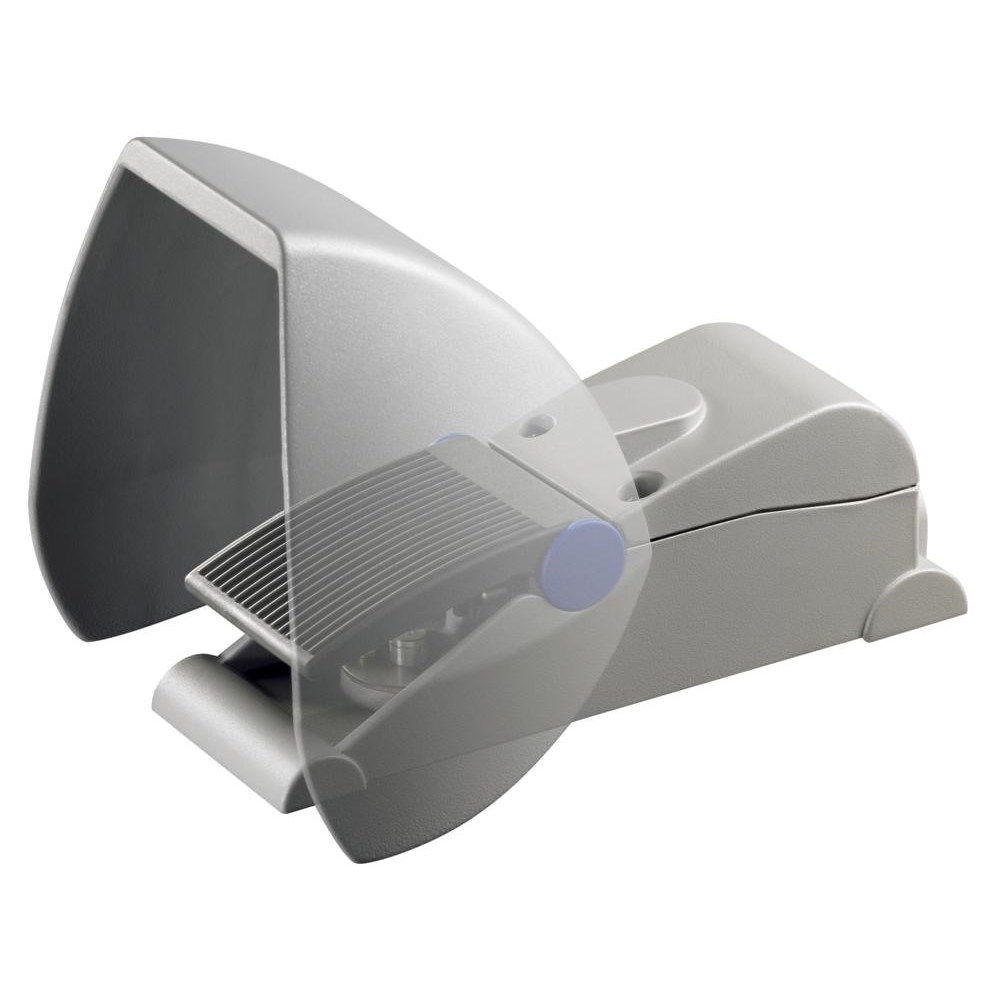

Schmersal 151181541 Foot Switch 1NO-1NC 230VAC 24VDC 4A 1A

Product Code: 151181541

  • Durable aluminium housing
  • IP65 protection for harsh environments
  • Snap action switching type
  • Complies with ENISO 13849-1 standards
  • Mechanical life of 1 million operations
In Stock Low Stock Out Of Stock Please See Attributes
1

Specifications

General

Product Type
Foot Switch
Brand
Schmersal
Series
F 232

Electrical

No. of N/C Contacts
1
No. of N/O Contacts
1
Plug Type
1 x M20 x 1,5
Rated Current (In)
4A 1A
Rated Voltage (Ur)
230VAC/24VDC

Mechanical

Actuator Type
single-pedal
Housing Colour
RAL 9006 (White aluminum)
Housing Material
Aluminium

Dimensions & Physical Data

Depth
274mm
Height
189mm
Weight
1,700g
Width
170mm

Environmental

IP Rating
IP65
Ambient Temperature
-25°C to 70°C

Documents

IPD Product Catalogue V17
