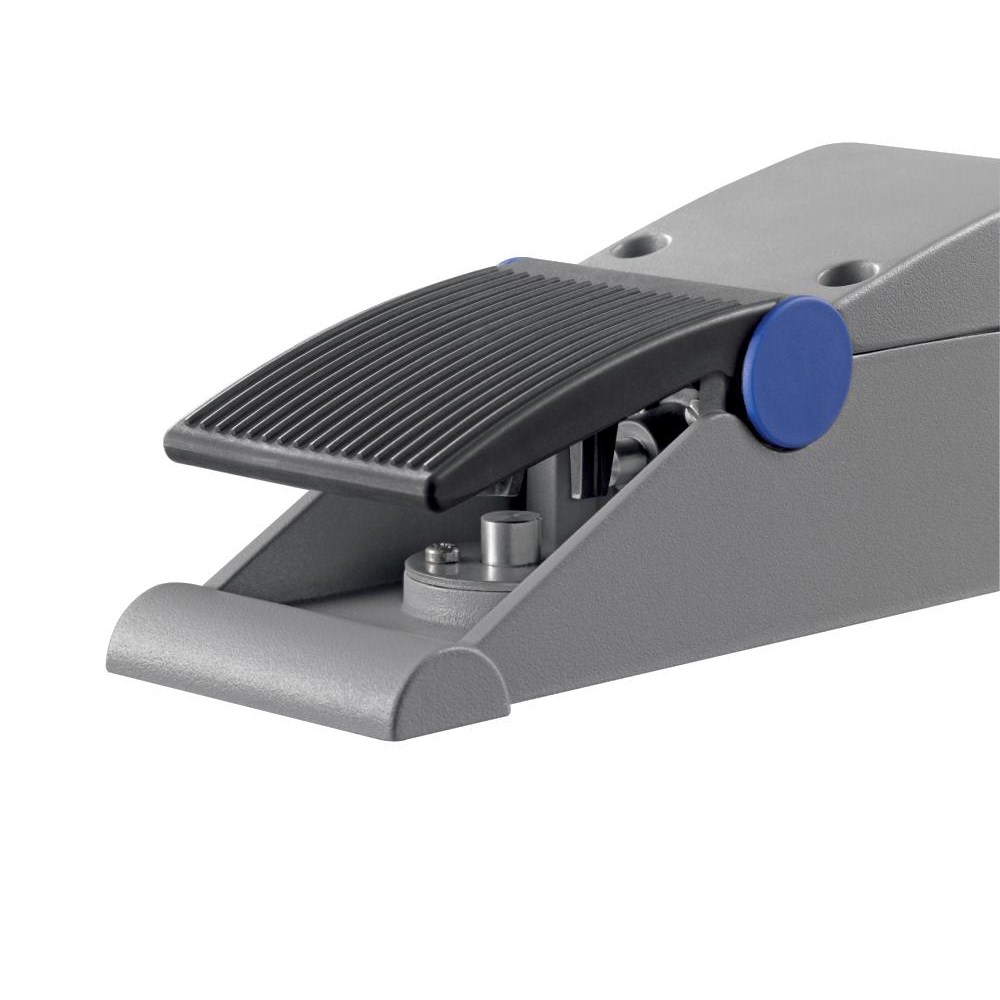

FOOT SWITCH 4 CONTACTS 2NC 2NO SNAP ACTION SCHMERSAL ZF 232-22

Product Code: 151181539

  • Suitable for 230 VAC and 24 VDC systems
  • Robust aluminium housing, IP65 rated
  • Complies with ENISO 13849-1 standards
  • Snap action switch with 1NO+1NC contacts
  • Long mechanical life of 1 million operations
In Stock Low Stock Out Of Stock Please See Attributes
1

Specifications

General

Product Type
Foot Switch
Brand
Schmersal
Series
F232

Electrical

No. of N/C Contacts
2
No. of N/O Contacts
2
Rated Current (In)
4A (Utilisation Cat AC-15)1A (Utilisation Cat DC-13)
Rated Voltage (Ur)
230 VAC (Utilisation Cat AC-15)24 VDC (Utilisation Cat DC-13)

Mechanical

Housing Material
Aluminium

Dimensions & Physical Data

Depth
255mm
Height
84mm
Weight
1.202kg
Width
82mm

Environmental

Operating Temperature
-25°C to 70°C
IP Rating
IP65
