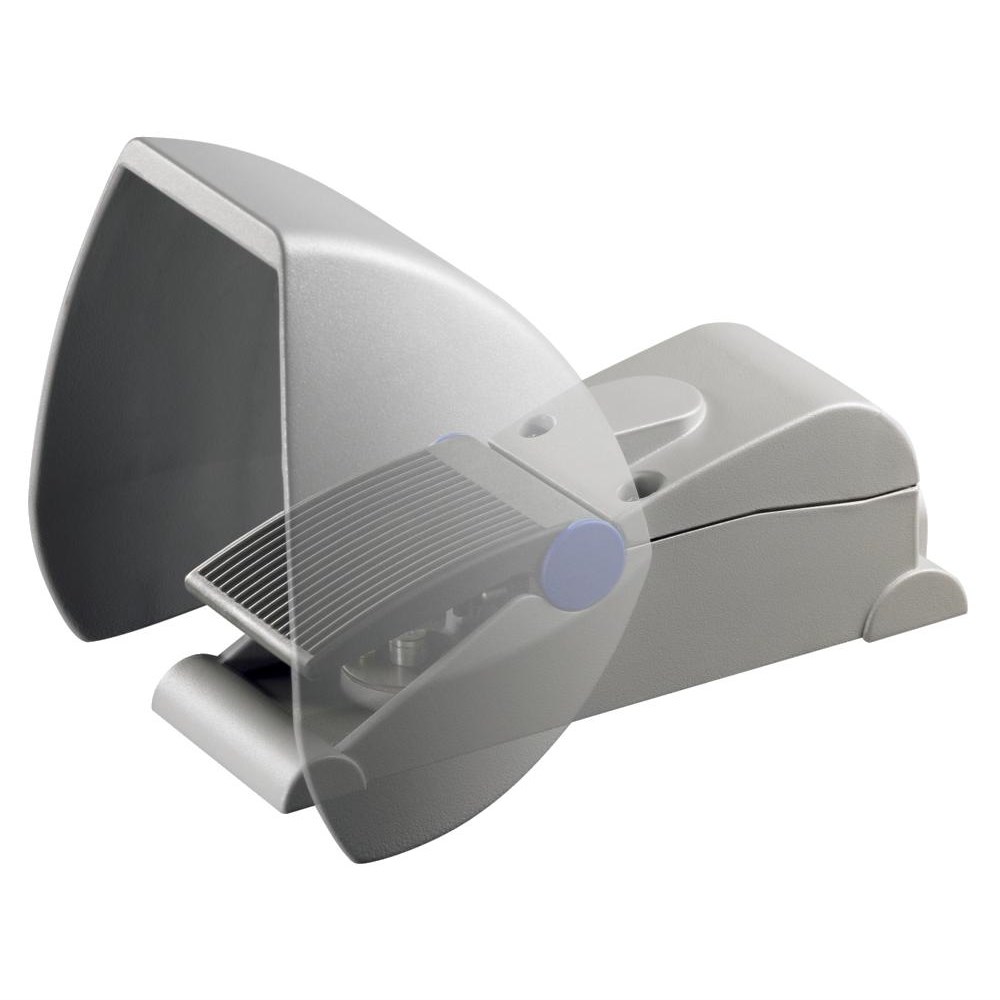

Schmersal 151181532 Foot Switch 1NO-1NC 230VAC 24VDC 4A 1A

Product Code: 151181532

  • Dual voltage: 230 VAC, 24 VDC
  • Durable aluminium housing, IP65 rated
  • Meets ENIEC 60947-5-1 standards
  • Compact size: 170x189x274 mm
  • Long mechanical life of 1 million ops
In Stock Low Stock Out Of Stock Please See Attributes
1

Specifications

General

Product Type
Foot Switch
Brand
Schmersal
Series
232

Electrical

No. of N/C Contacts
2
No. of N/O Contacts
2
Rated Current (In)
4A AC, 1A DC
Rated Voltage (Ur)
230V AC, 24V DC

Mechanical

Actuator Type
Pedal
Housing Colour
RAL 9006 (White aluminum)
Housing Material
Aluminium

Dimensions & Physical Data

Depth
274mm
Height
189mm
Weight
2.051kg
Width
170mm

Environmental

Operating Temperature
-25°C to 70°C
IP Rating
IP65
