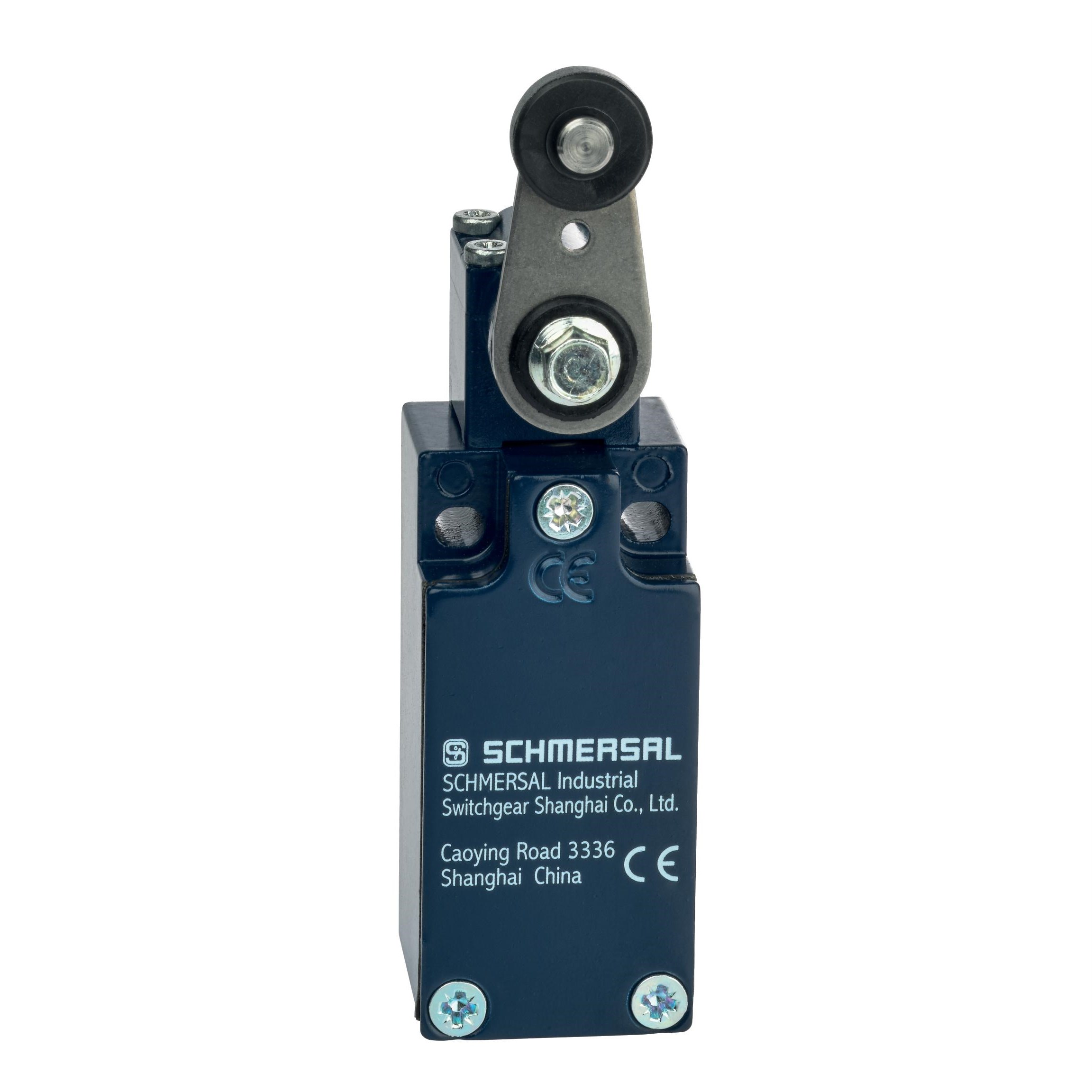

Schmersal 151172584 Position Switch with Safety Function 230VAC, 24VDC 1NO+1NC

Product Code: 151172584

  • Dual voltage: 230 VAC, 24 VDC
  • High durability: 20 million cycles
  • Robust IP67 zinc housing
  • Operates from -30 to 80°C
  • Complies with EN IEC & ISO standards
In Stock Low Stock Out Of Stock Please See Attributes
1

Specifications

General

Product Type
Position Switch
Brand
Schmersal

Electrical

No. of N/C Contacts
1
No. of N/O Contacts
1
Rated Insulation Voltage (Ui)
500V
Terminal Type
Screw terminals
Thermal Test Current
10A

Mechanical

Actuator Type
Rod lever
Housing Material
Metal, zinc die-cast

Dimensions & Physical Data

Depth
46mm
Height
110.5mm
Weight
0.211kg
Width
30mm

Environmental

IP Rating
IP65,IP67
Ambient Temperature
-30°C to 80°C

Documents

IPD Product Catalogue V17
