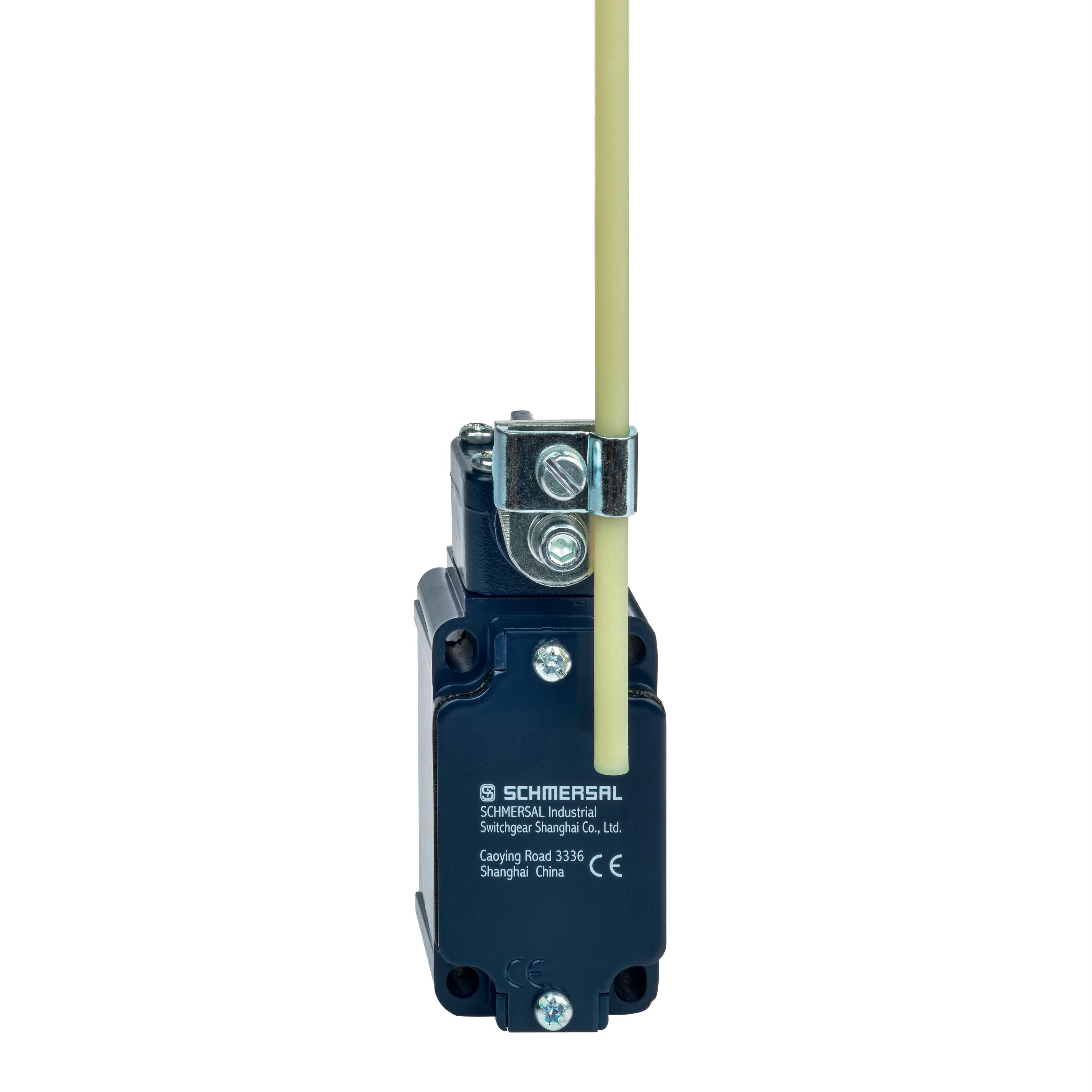

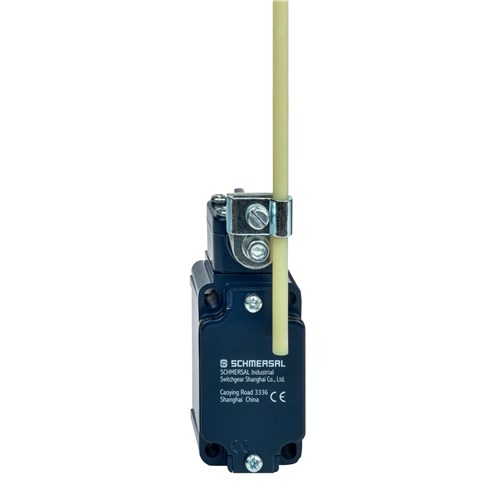

Schmersal 151172111 Position Switch with Safety Function 230VAC, 24VDC NC

Product Code: 151172111

  • Rated for 230 VAC and 24 VDC
  • Handles up to 4 A current
  • IP67 protection rating
  • Operates in -30 to 80°C range
  • Durable with 30 million cycles
In Stock Low Stock Out Of Stock Please See Attributes
1

Specifications

General

Product Type
Position Switch
Brand
Schmersal

Electrical

No. of N/C Contacts
2
Rated Insulation Voltage (Ui)
500V
Terminal Type
Screw terminals
Thermal Test Current
10A

Mechanical

Actuator Type
Rod lever
Housing Material
Light alloy die-casting

Dimensions & Physical Data

Depth
38mm
Height
111.5mm
Weight
0.26kg
Width
40.5mm

Environmental

IP Rating
IP65,IP67
Ambient Temperature
-30°C to 80°C

Documents

IPD Product Catalogue V17
