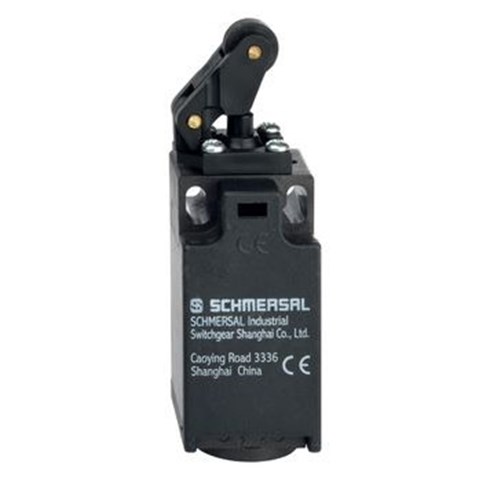

Schmersal 151172062 Position Switch with Safety Function 230VAC NC

Product Code: 151172062

  • Rated Voltage: 230 VAC, Current: 4 A
  • High durability with 20M mechanical cycles
  • IP65/IP67 protection for harsh environments
  • Operates in -30 to 80°C temperature range
  • Offset roller lever for precise actuation
In Stock Low Stock Out Of Stock Please See Attributes
1

Specifications

General

Product Type
Position Switch
Brand
Schmersal

Electrical

No. of N/C Contacts
2
Rated Insulation Voltage (Ui)
500V
Terminal Type
Screw terminals
Thermal Test Current
10A

Mechanical

Actuator Type
Offset roller lever
Housing Material
Plastic, glass-fibre-reinforced

Dimensions & Physical Data

Depth
30mm
Height
93.1mm
Weight
0.06kg
Width
30mm

Environmental

IP Rating
IP65,IP67
Ambient Temperature
-30°C to 80°C

Documents

IPD Product Catalogue V17
