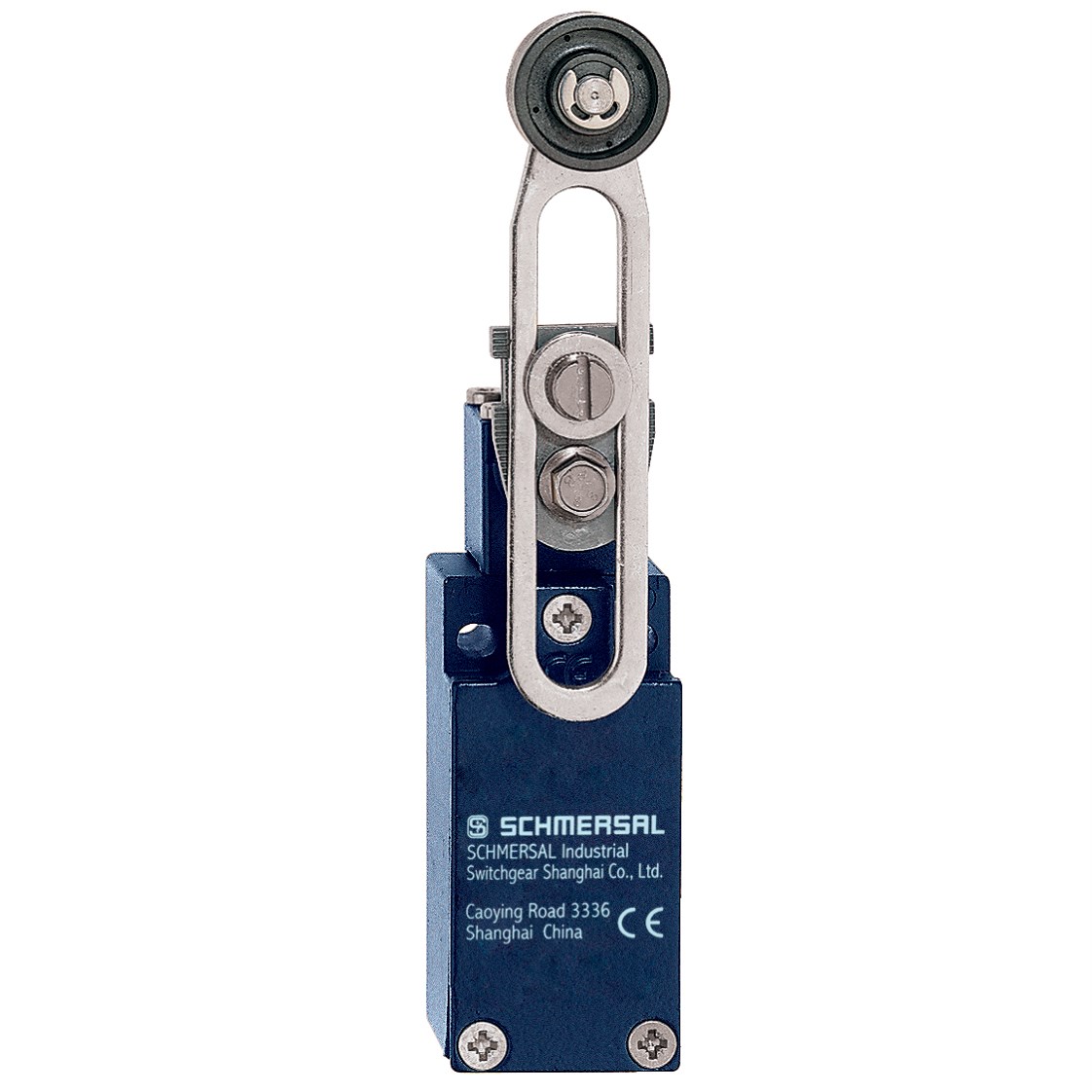

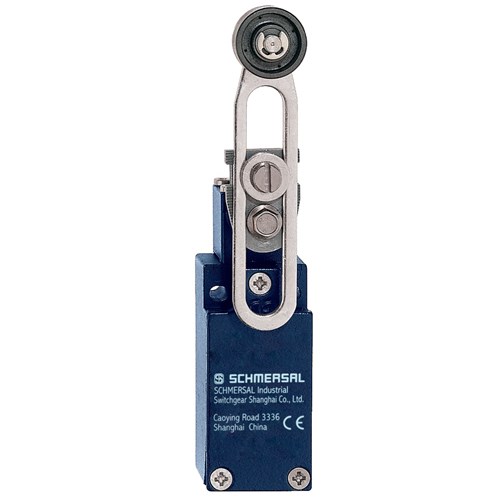

Schmersal 151171788 Position Switch

Product Code: 151171788

Complies with BG-GS-ET-15, ENIEC 60947-5-1 standards
Supports up to 1 m/s actuating speed
Durable with 2 million operations mechanical life
Screw terminal type for secure connections

1

Specifications

General

Product Type

Position Switch

Brand

Schmersal

Electrical

No. of N/C Contacts

2

Terminal Type

Screw

Thermal Test Current

10A

Mechanical

Actuator Type

Roller lever

Contact Material

Silver

Housing Material

Metal, zinc die-cast

Dimensions & Physical Data

Depth 49mm	Height 160.5mm	Weight 0.226kg
Width 30mm

Environmental

IP Rating

IP65, IP67

Ambient Temperature

-40°C to 80°C
