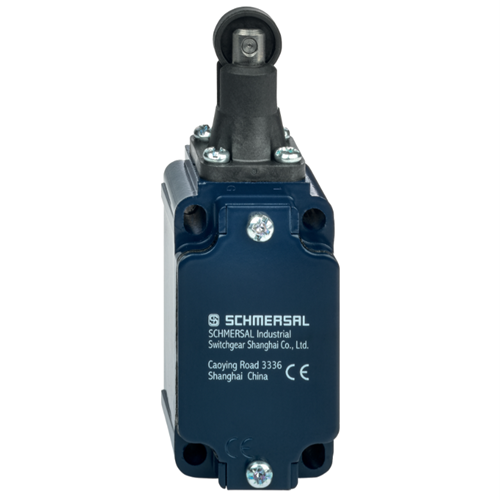

Schmersal 151170902 Roller Plunger Limit Switch

Product Code: 151170902

  • Rated current: 10 A, quick action mechanism
  • Durable die cast light alloy housing
  • High protection: IP65 & IP67 rated
  • Operates in -30 to 80°C temperature range
  • Long mechanical life: 30 million cycles
In Stock Low Stock Out Of Stock Please See Attributes
1

Specifications

General

Product Type
Position Switch
Brand
Schmersal

Electrical

No. of N/C Contacts
2
Rated Insulation Voltage (Ui)
500V
Terminal Type
Screw terminals
Thermal Test Current
10A

Mechanical

Actuator Type
Roller plunger
Housing Material
Light alloy die-casting

Dimensions & Physical Data

Depth
38mm
Height
116.6mm
Weight
0.195kg
Width
40.5mm

Environmental

IP Rating
IP65,IP67
Ambient Temperature
-30°C to 80°C

Documents

IPD Product Catalogue V17
