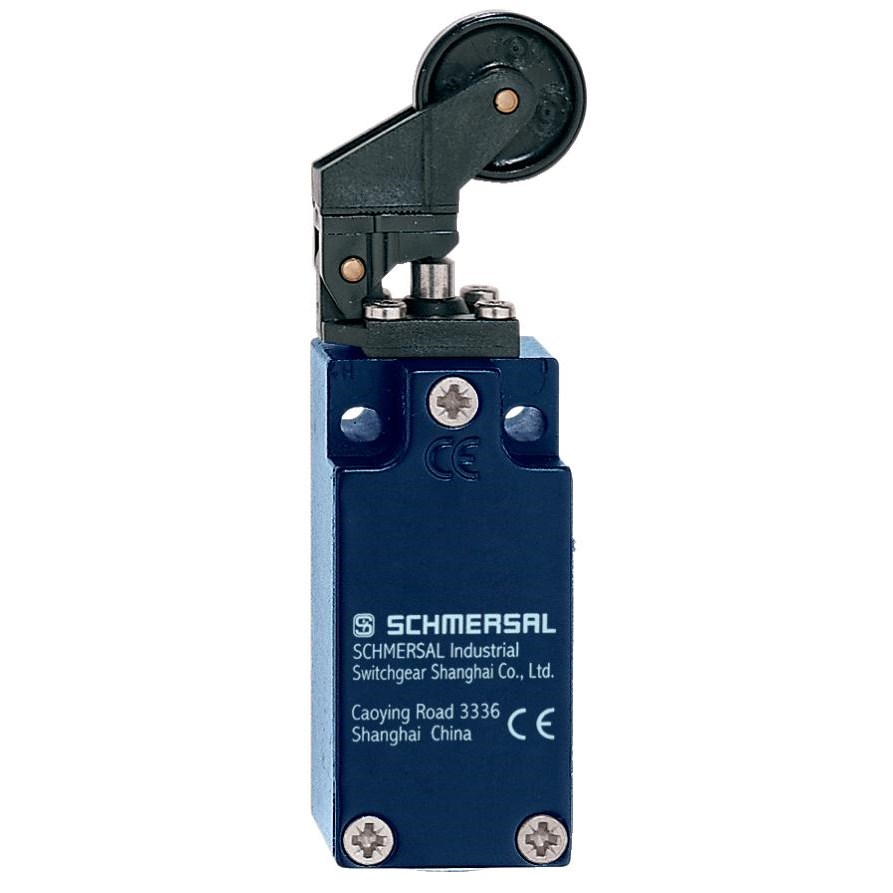

Schmersal 151169325 Position Switch with Safety Function 230VAC, 24VDC 1NO+1NC

Product Code: 151169325

  • Operates at 230 VAC & 24 VDC
  • Durable with 20 million cycles
  • IP67 protection for harsh environments
  • Snap action with angle roller lever
  • Compliant with EN ISO 13849-1 standards
In Stock Low Stock Out Of Stock Please See Attributes
1

Specifications

General

Product Type
Position Switch
Brand
Schmersal

Electrical

No. of N/C Contacts
1
No. of N/O Contacts
1
Rated Insulation Voltage (Ui)
500V
Terminal Type
Screw terminals
Thermal Test Current
10A

Mechanical

Actuator Type
Angle roller lever
Housing Material
Metal, zinc die-cast

Dimensions & Physical Data

Depth
30mm
Height
107mm
Weight
0.155kg
Width
32mm

Environmental

IP Rating
IP65,IP67
Ambient Temperature
-30°C to 80°C
