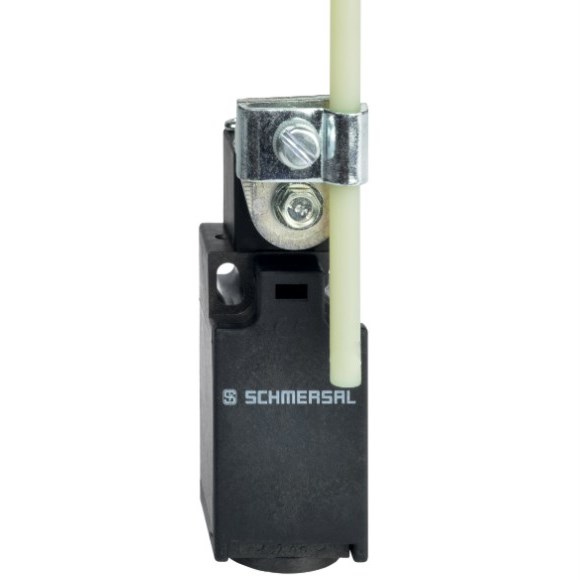

Schmersal 151168178 Position Switch

Product Code: 151168178

In Stock Low Stock Out Of Stock Please See Attributes
1

Specifications

General

Product Type
Position Switch
Brand
Schmersal

Electrical

No. of N/C Contacts
1
No. of N/O Contacts
1
Rated Insulation Voltage (Ui)
500V
Terminal Type
Screw
Thermal Test Current
10A

Mechanical

Actuator Type
Rod lever
Contact Material
Silver
Housing Material
Plastic, glass-fibre-reinforced

Dimensions & Physical Data

Depth
43.5mm
Height
96.5mm
Weight
0.095kg
Width
30mm

Environmental

IP Rating
IP65, IP67
Ambient Temperature
-40°C to 80°C

Documents

IPD Product Catalogue V17
