Products

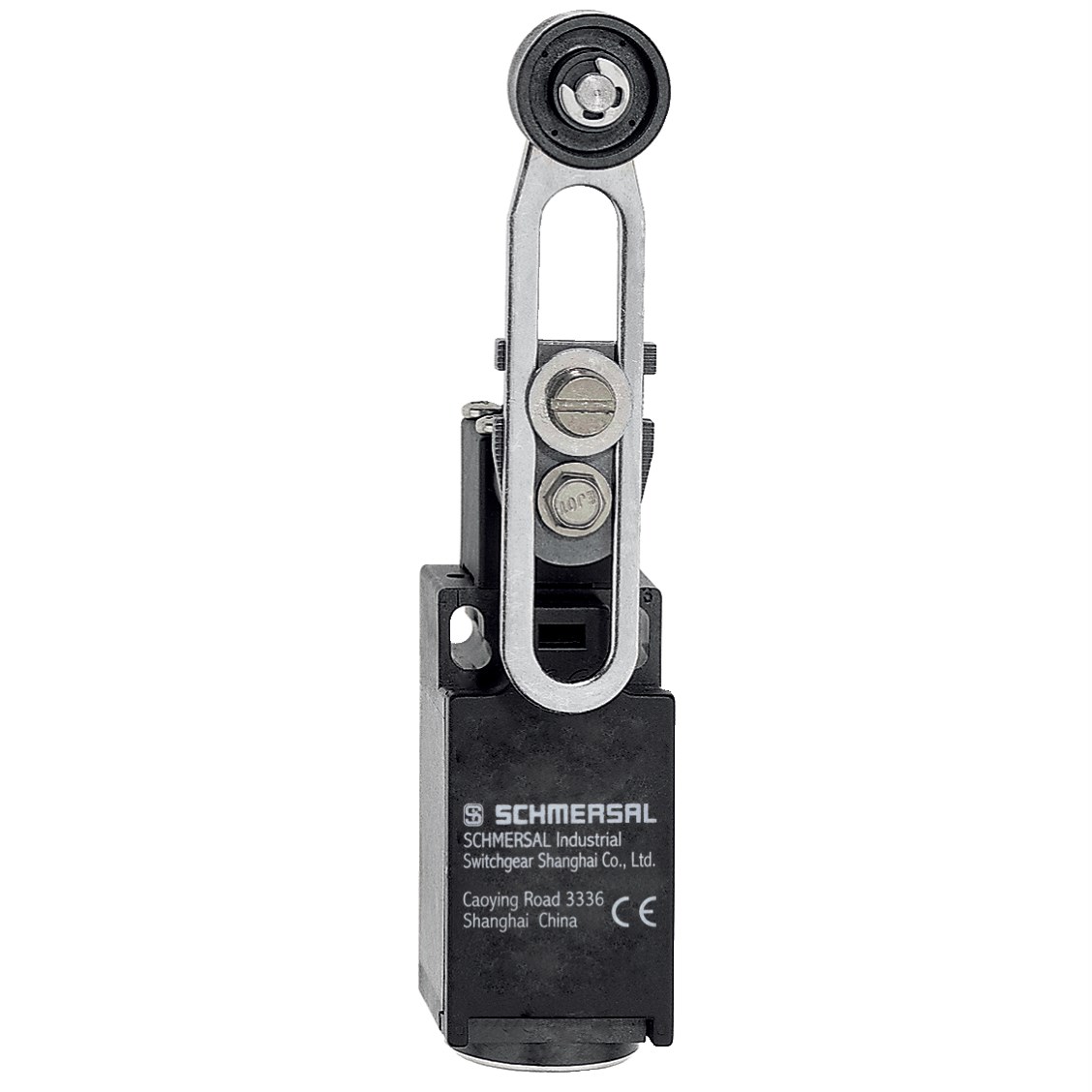

Schmersal 151168168 Position Switch with Safety Function 230VAC 1NO+1NC

Product Code: 151168168

  • Operates at 230 VAC, 4 A
  • Durable with 20 million cycles
  • IP65/IP67 protection rating
  • Functions in -30 to 80°C range
  • Complies with EN IEC 60947-5-1
In Stock Low Stock Out Of Stock Please See Attributes
1

Specifications

General

Product Type
Position Switch
Brand
Schmersal

Electrical

No. of N/C Contacts
1
No. of N/O Contacts
1
Rated Insulation Voltage (Ui)
500V
Terminal Type
Screw terminals
Thermal Test Current
10A

Mechanical

Actuator Type
Roller lever
Housing Material
Plastic, glass-fibre-reinforced

Dimensions & Physical Data

Depth
49mm
Height
158.5mm
Weight
0.095kg
Width
30mm

Environmental

IP Rating
IP65,IP67
Ambient Temperature
-30°C to 80°C

Documents

IPD Product Catalogue V17
