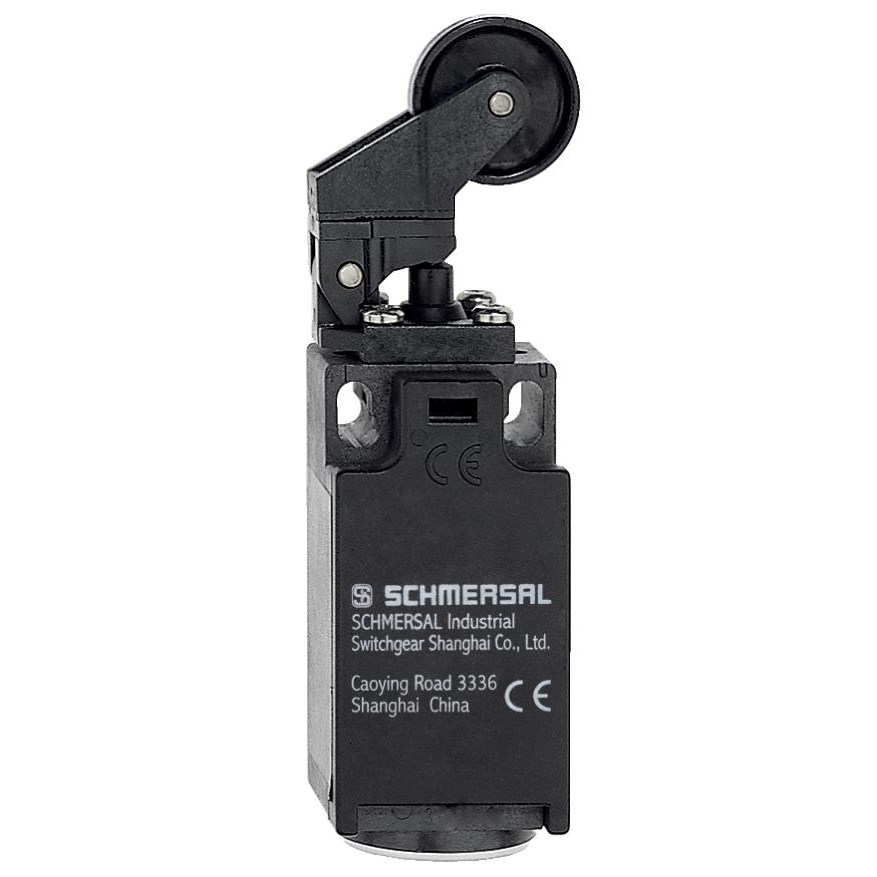

Schmersal 151168167 Position Switch with Safety Function 230VAC, 24VDC 1NO+1NC

Product Code: 151168167

  • Dual voltage: 230 VAC, 24 VDC
  • Contact config: 1NO+1NC
  • Durable mech. life: 20 million cycles
  • Robust IP67 protection
  • Wide temp range: -30 to 80°C
In Stock Low Stock Out Of Stock Please See Attributes
1

Specifications

General

Product Type
Position Switch
Brand
Schmersal

Electrical

No. of N/C Contacts
1
No. of N/O Contacts
1
Rated Insulation Voltage (Ui)
500V
Terminal Type
Screw terminals
Thermal Test Current
10A

Mechanical

Actuator Type
Angle roller lever
Housing Material
Plastic, glass-fibre-reinforced

Dimensions & Physical Data

Depth
30mm
Height
107mm
Weight
0.06kg
Width
30mm

Environmental

IP Rating
IP65,IP67
Ambient Temperature
-30°C to 80°C

Documents

IPD Product Catalogue V17
