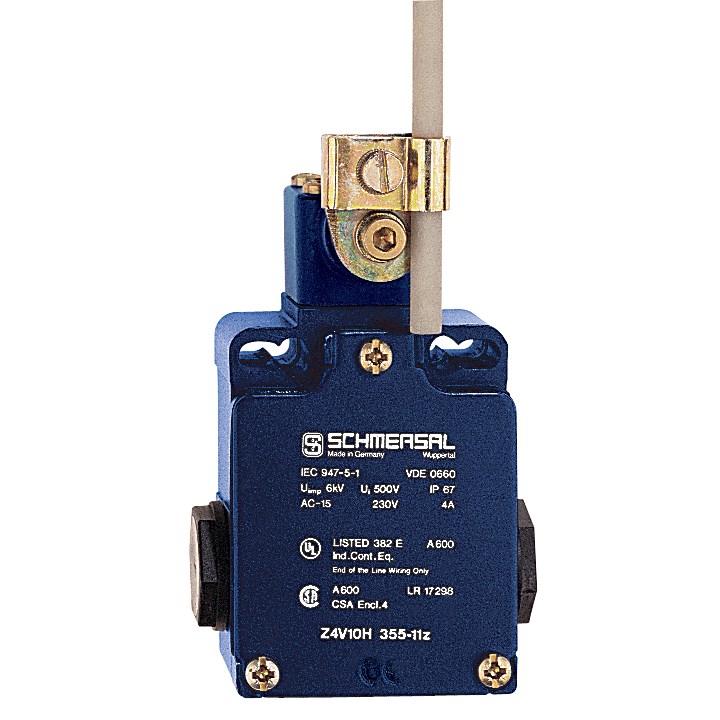

Schmersal 151168154 Position Switch with Safety Function 230VAC

Product Code: 151168154

  • Operates at 230 VAC with 4 A current
  • Durable, 30 million mechanical cycles
  • Robust IP65/IP67 protection rating
  • Wide operating temp: -30 to 80°C
  • Complies with major global standards
In Stock Low Stock Out Of Stock Please See Attributes
1

Specifications

General

Product Type
Position Switch
Brand
Schmersal

Electrical

No. of N/C Contacts
1
No. of N/O Contacts
1
Rated Insulation Voltage (Ui)
500V
Terminal Type
Screw terminals
Thermal Test Current
10A

Mechanical

Actuator Type
Rod lever
Housing Material
Light alloy die-casting

Dimensions & Physical Data

Depth
38mm
Height
111.5mm
Weight
0.306kg
Width
66.7mm

Environmental

IP Rating
IP65,IP67
Ambient Temperature
-30°C to 80°C

Documents

IPD Product Catalogue V17
