1 Cable entry M 20 x 1.5 Only for positioning tasks Design to EN 50041 Thermoplastic enclosure Lever angle adjustable in 10° steps Double-insulated Good resistance to oil and petroleum spirit Wide range of alternative actuators Actuator heads can be repositioned by 4 x 90°

Specifications

Product Type

Position Switch

Brand

Schmersal

No. of N/C Contacts 1	No. of N/O Contacts 1	Rated Insulation Voltage (Ui) 500V 250 VAC
Terminal Type Screw terminals	Thermal Test Current 10A

Actuator Type

Roller lever

Housing Material

Plastic, glass-fibre-reinforced

Depth 57mm	Height 173.5mm	Weight 0.165kg
Width 40.5mm

IP Rating

IP65,IP67

Ambient Temperature

-30°C to 80°C

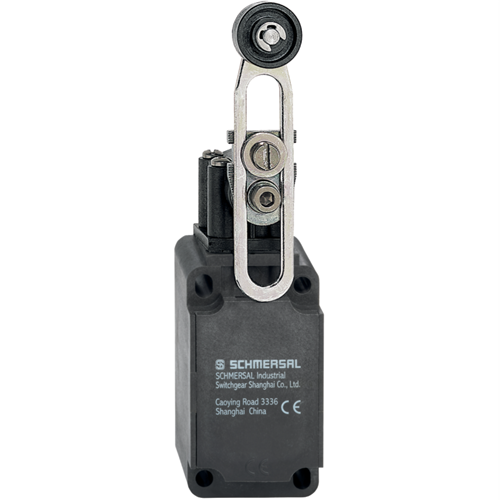

Schmersal 151168153 Roller Lever Limit Switch With Safety Function
