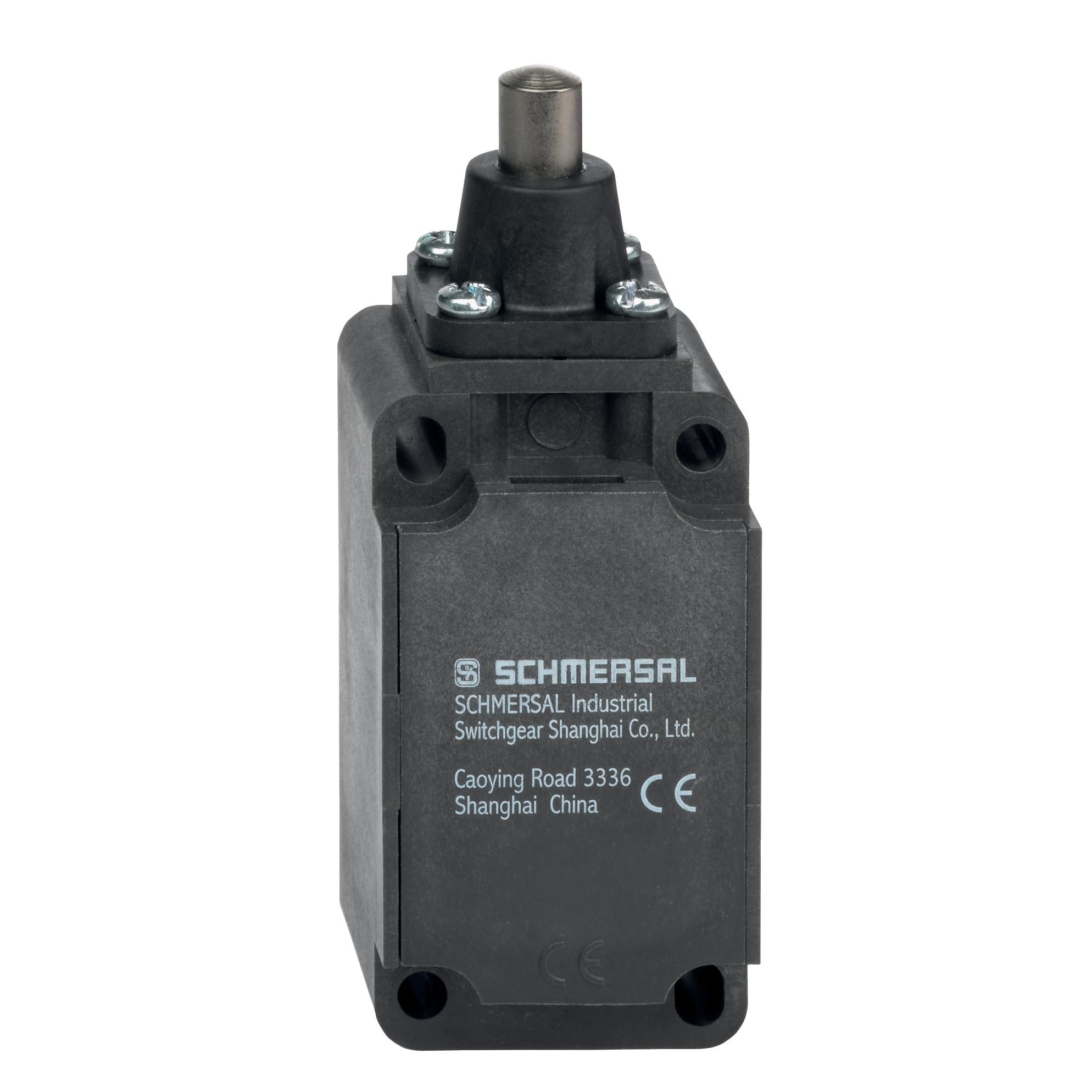

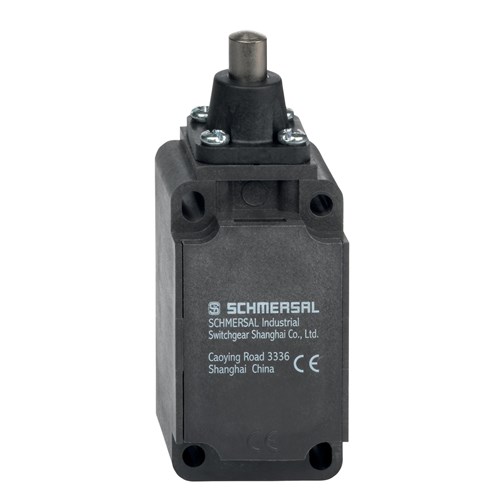

Schmersal 151168150 Position Switch with Safety Function 230VAC, 24VDC NC

Product Code: 151168150

  • Rated for 230 VAC, 24 VDC
  • Durable with 30 million cycles life
  • IP67 protection, robust design
  • Snap action with plunger actuator
  • Operates at -30 to 80°C
In Stock Low Stock Out Of Stock Please See Attributes
1

Specifications

General

Product Type
Position Switch
Brand
Schmersal

Electrical

No. of N/C Contacts
2
Rated Insulation Voltage (Ui)
500V
Terminal Type
Screw terminals
Thermal Test Current
10A

Mechanical

Actuator Type
Plunger
Housing Material
Plastic, glass-fibre-reinforced

Dimensions & Physical Data

Depth
38mm
Height
103.5mm
Weight
0.118kg
Width
40.5mm

Environmental

IP Rating
IP65,IP67
Ambient Temperature
-30°C to 80°C

Documents

IPD Product Catalogue V17
