1 Cable entry M20 x 1.5 Metal enclosure Wide range of alternative actuators Good resistance to oil and petroleum spirit Actuator heads can be repositioned by 4 x 90° Only for positioning tasks Design to EN 50041

Specifications

Product Type

Position Switch

Brand

Schmersal

No. of N/C Contacts 1	No. of N/O Contacts 1	Rated Insulation Voltage (Ui) 500V
Terminal Type Screw terminals	Thermal Test Current 10A

Actuator Type

Roller lever

Housing Material

Light alloy die-casting

Depth 57.3mm	Height 173.5mm	Weight 0.255kg
Width 40.5mm

IP Rating

IP65,IP67

Ambient Temperature

-30°C to 80°C

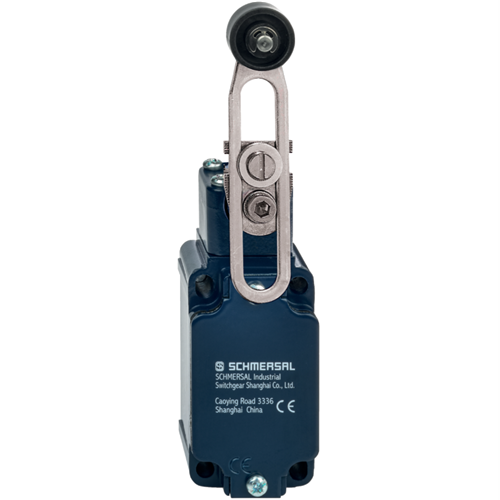

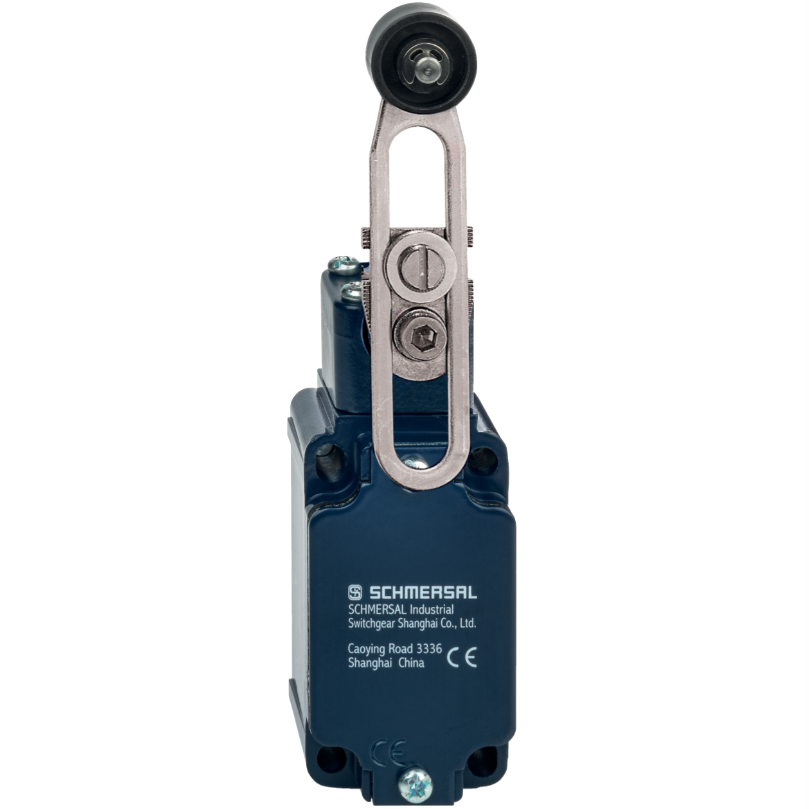

Schmersal 151168108 Roller Lever Limit Switch With Safety Function
