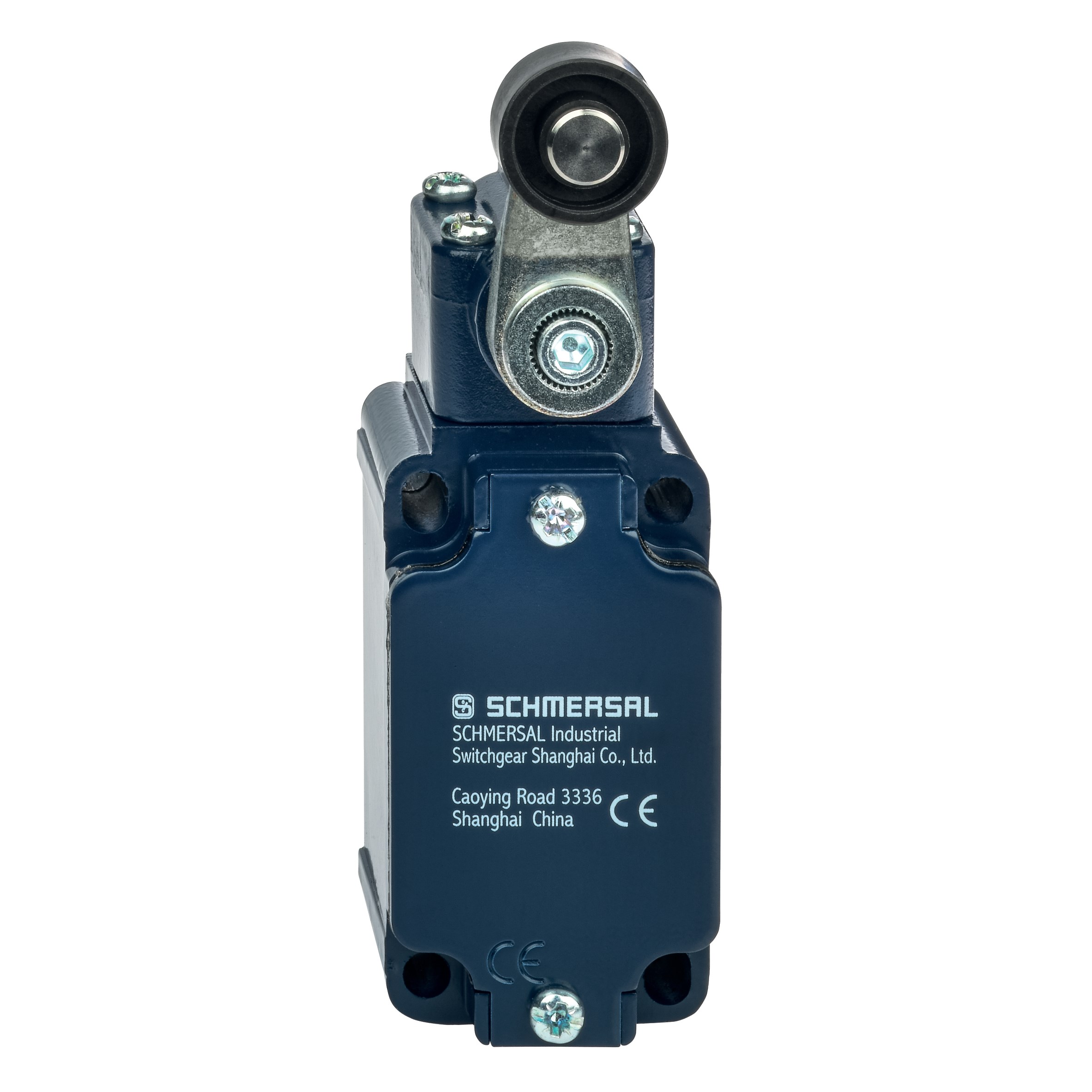

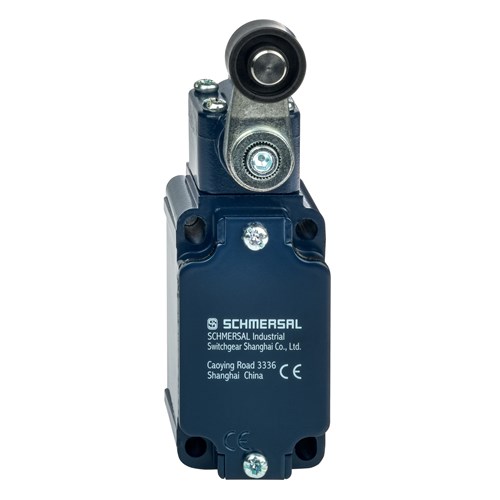

Schmersal 151168105 Position Switch with Safety Function

Product Code: 151168105

  • Rated for 10 A current
  • Durable die-cast light alloy housing
  • High protection: IP65, IP67 rated
  • Operates in -30 to 80°C range
  • Long lifespan: 30 million cycles
In Stock Low Stock Out Of Stock Please See Attributes
1

Specifications

General

Product Type
Position Switch
Brand
Schmersal

Electrical

No. of N/C Contacts
1
No. of N/O Contacts
1
Rated Insulation Voltage (Ui)
500V
Terminal Type
Screw terminals
Thermal Test Current
10A

Mechanical

Actuator Type
Roller lever
Housing Material
Light alloy die-casting

Dimensions & Physical Data

Depth
60.6mm
Height
129.5mm
Weight
0.265kg
Width
40.5mm

Environmental

IP Rating
IP65,IP67
Ambient Temperature
-30°C to 80°C

Documents

IPD Product Catalogue V17
