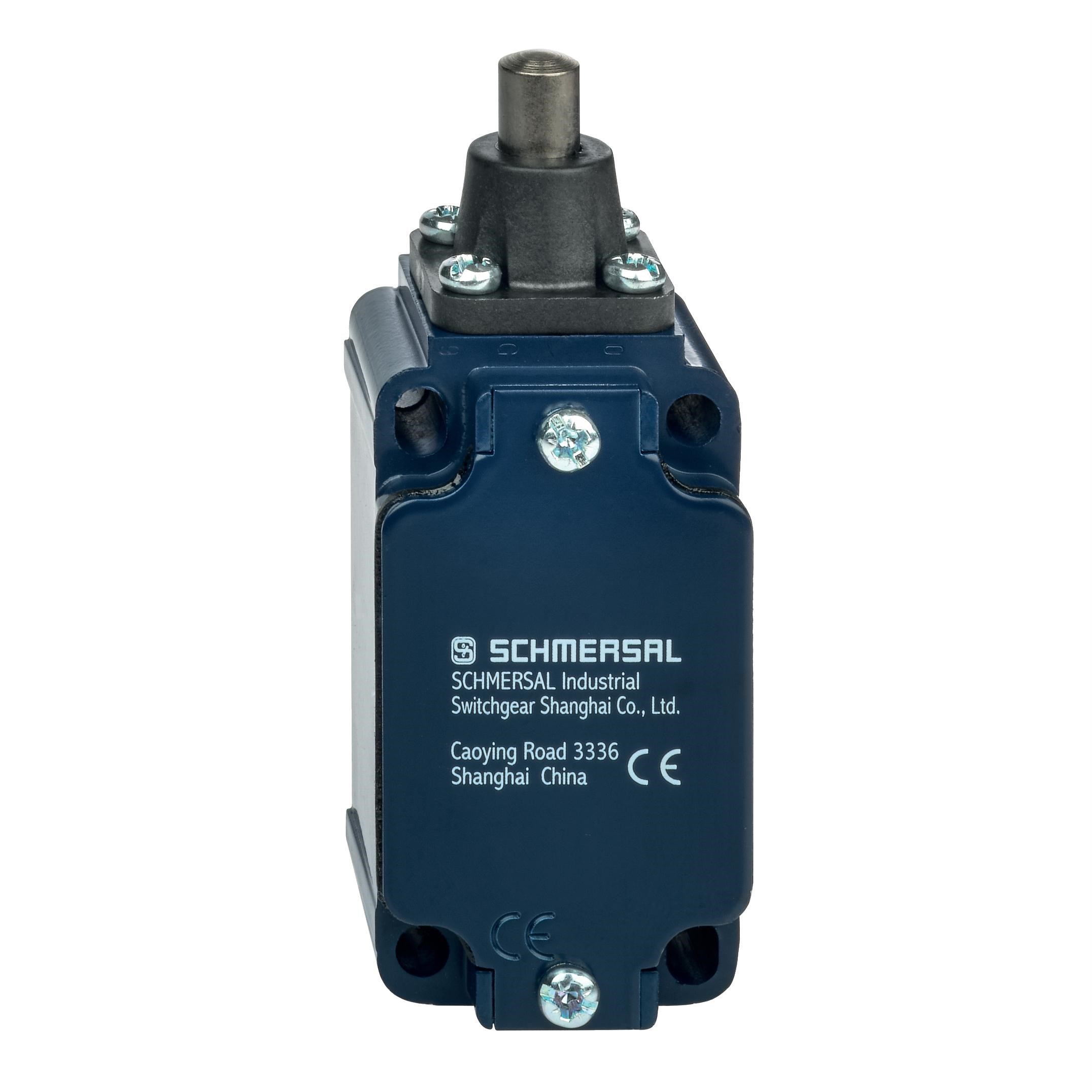

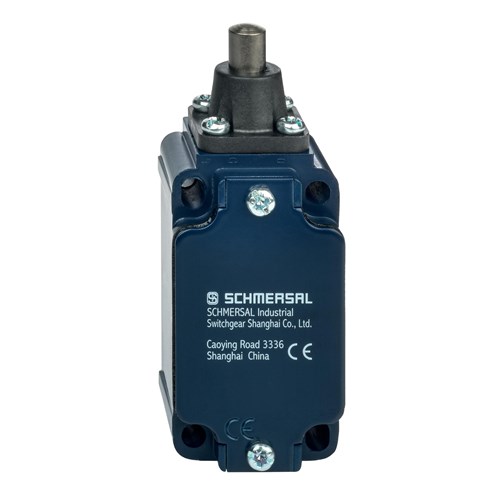

Schmersal 151168104 Position Switch with Safety Function 230VAC, 24VDC 1NO+1NC

Product Code: 151168104

  • 230 VAC, 24 VDC rated limit switch
  • Durable die cast light alloy housing
  • IP67 protection for harsh environments
  • Slow action with plunger actuator
  • Long mechanical life of 30 million cycles
In Stock Low Stock Out Of Stock Please See Attributes
1

Specifications

General

Product Type
Position Switch
Brand
Schmersal
Series
TS 335

Electrical

No. of N/C Contacts
1
No. of N/O Contacts
1
Rated Current (In)
4A, 4A
Rated Voltage (Ur)
230V AC, 24V DC
Terminal Type
Screw terminals

Mechanical

Actuator Type
Plunger, Type B (EN 50041)
Housing Material
Light alloy die-casting, painted

Dimensions & Physical Data

Depth
38mm
Height
103.5mm
Weight
0.205kg
Width
40.5mm

Environmental

Operating Temperature
-40°C to 80°C
IP Rating
IP65, IP67
