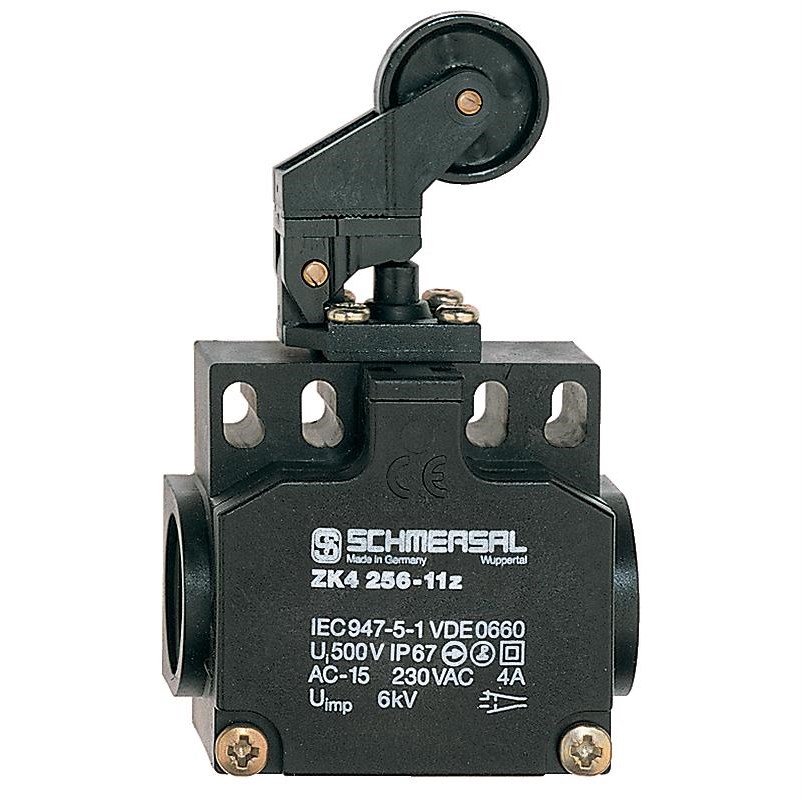

Schmersal 151167215 Position Switch with Safety Function 230VAC, 24VDC 1NO+1NC

Product Code: 151167215

  • Dual voltage: 230 VAC, 24 VDC
  • High durability: 20 million cycles
  • Robust IP67 protection rating
  • Operates in -30 to 80°C range
  • Compliant with EN IEC 60947 standards
In Stock Low Stock Out Of Stock Please See Attributes
1

Specifications

General

Product Type
Position Switch
Brand
Schmersal

Electrical

No. of N/C Contacts
1
No. of N/O Contacts
1
Rated Insulation Voltage (Ui)
500V
Terminal Type
Screw terminals
Thermal Test Current
10A

Mechanical

Actuator Type
Angle roller lever
Housing Material
Plastic, glass-fibre-reinforced

Dimensions & Physical Data

Depth
31mm
Height
94mm
Weight
0.085kg
Width
58mm

Environmental

IP Rating
IP65,IP67
Ambient Temperature
-30°C to 80°C
