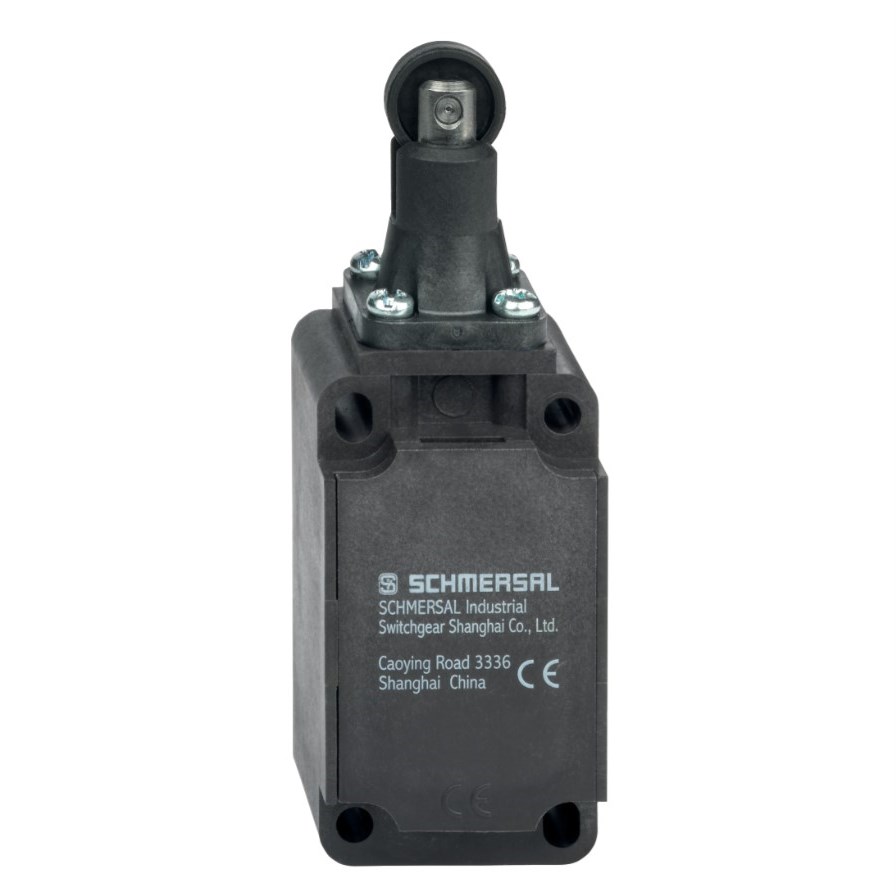

Schmersal 151167094 Position Switch with Safety Function 2NC

Product Code: 151167094

  • 2NC contact configuration for secure operations
  • Durable plastic housing with glass fibre reinforcement
  • High protection rating of IP65, IP67
  • Operates in temperatures from -30 to 80°C
  • Complies with BG-GS-ET-15, EN IEC 60947-5-1 standards
In Stock Low Stock Out Of Stock Please See Attributes
1

Specifications

General

Product Type
Position Switch
Brand
Schmersal

Electrical

No. of N/C Contacts
2
Rated Insulation Voltage (Ui)
500V
Terminal Type
Screw terminals
Thermal Test Current
10A

Mechanical

Actuator Type
Roller plunger
Housing Material
Plastic, glass-fibre-reinforced

Dimensions & Physical Data

Depth
38mm
Height
116.5mm
Weight
0.105kg
Width
40.5mm

Environmental

IP Rating
IP65,IP67
Ambient Temperature
-30°C to 80°C

Documents

IPD Product Catalogue V17
