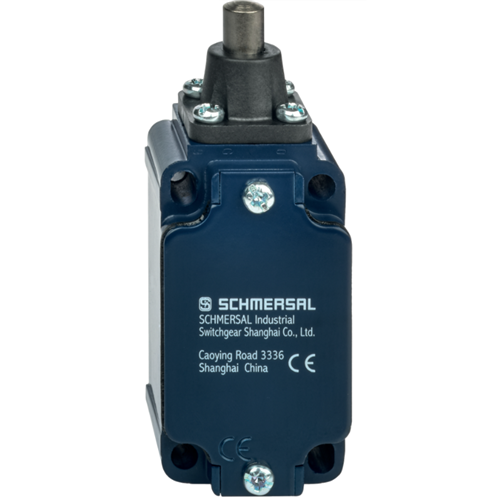

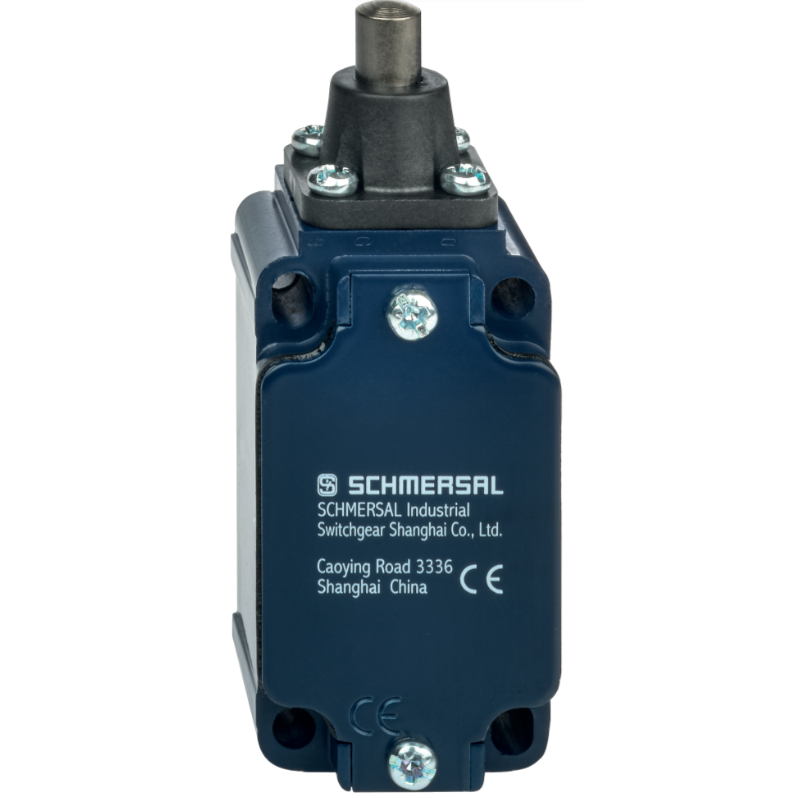

Schmersal 151166484 Plunger Limit Switch Plunger Plastic Glass Fibre Reinforced Thermoplastic Silver Contact

Product Code: 151166484

  • Rated for 10A current
  • Durable glass fibre reinforced thermoplastic housing
  • IP65/IP67 protection against dust and water
  • Snap action switching for quick response
  • Silver contact material ensures reliable performance
In Stock Low Stock Out Of Stock Please See Attributes
1

Specifications

General

Product Type
Position Switch
Brand
Schmersal
Series
M 330 plunger S

Electrical

No. of N/C Contacts
1
No. of N/O Contacts
1
Rated Insulation Voltage (Ui)
500V
Rated Current (In)
4A (AC-15)
Rated Voltage (Ur)
230V AC (AC-15)
Terminal Type
Screw
Thermal Test Current
10A

Mechanical

Actuator Type
Plunger
Contact Material
Silver
Housing Material
Light alloy die-casting

Dimensions & Physical Data

Depth
38mm
Height
103.5mm
Weight
0.207kg
Width
40.5mm

Environmental

IP Rating
IP65, IP67
Ambient Temperature
-40°C to 80°C
