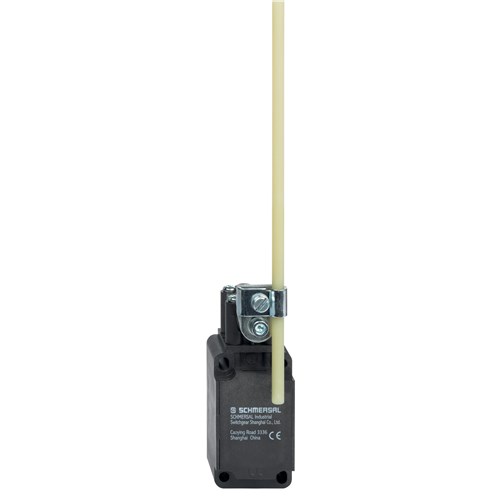

Schmersal 151165849 Position Switch with Safety Function 230VAC, 24VDC 1NO+1NC

Product Code: 151165849

  • Rated for 230 VAC and 24 VDC, 4 A
  • Durable with 30 million mechanical cycles
  • IP67 protection against dust and water
  • Operates in temperatures from -30 to 80°C
  • Features a rod lever actuating element
In Stock Low Stock Out Of Stock Please See Attributes
1

Specifications

General

Product Type
Position Switch
Brand
Schmersal

Electrical

No. of N/C Contacts
1
No. of N/O Contacts
1
Rated Insulation Voltage (Ui)
500V
Terminal Type
Screw terminals
Thermal Test Current
10A

Mechanical

Actuator Type
Rod lever
Housing Material
Plastic, glass-fibre-reinforced

Dimensions & Physical Data

Depth
52mm
Height
111.5mm
Weight
0.184kg
Width
40.5mm

Environmental

IP Rating
IP65,IP67
Ambient Temperature
-30°C to 80°C

Documents

IPD Product Catalogue V17
