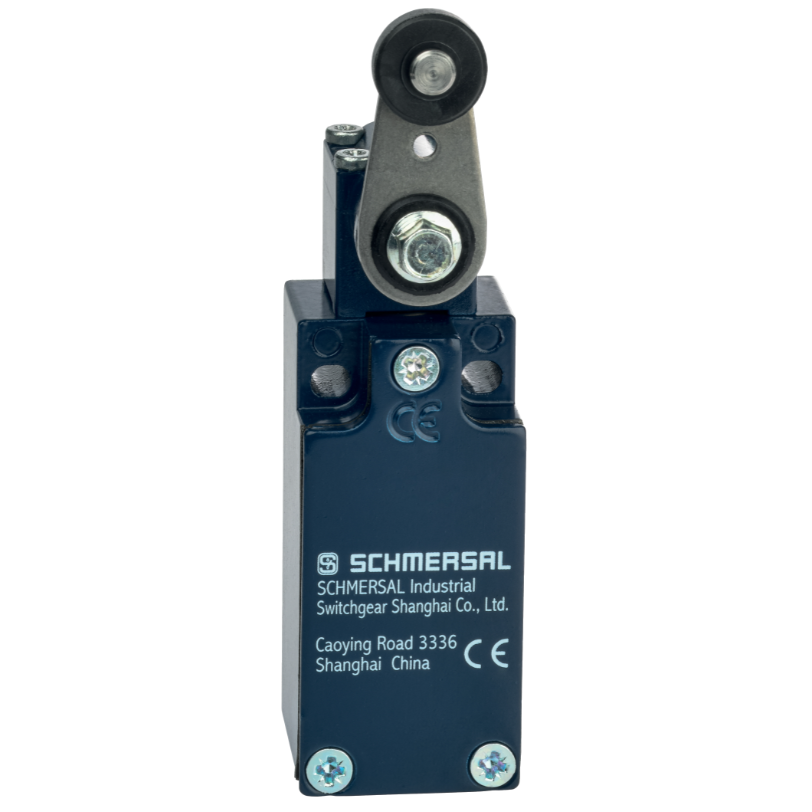

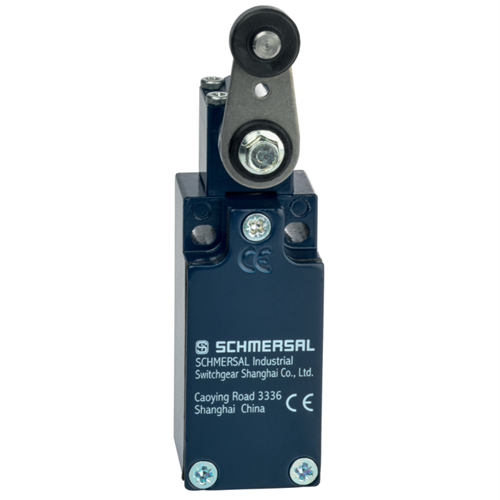

Schmersal 151164475 Roller Plunger Limit Switch Roller Lever NO-NC 30mm W Metal Die Cast Zinc Silver Contact

Product Code: 151164475

  • Durable metal, die-cast zinc housing
  • High protection: IP65, IP67 rated
  • Complies with ENIEC 60947-5-1 standards
  • Snap action switching for quick response
  • Roller lever actuator for precise operation
In Stock Low Stock Out Of Stock Please See Attributes
1

Specifications

General

Product Type
Position Switch
Brand
Schmersal

Electrical

No. of N/C Contacts
1
No. of N/O Contacts
1
Rated Insulation Voltage (Ui)
500V
Terminal Type
Screw
Thermal Test Current
10A

Mechanical

Actuator Type
Roller lever
Contact Material
Silver
Housing Material
Metal, zinc die-cast

Dimensions & Physical Data

Depth
46mm
Height
110.5mm
Weight
0.206kg
Width
30mm

Environmental

IP Rating
IP65, IP67
Ambient Temperature
-40°C to 80°C
