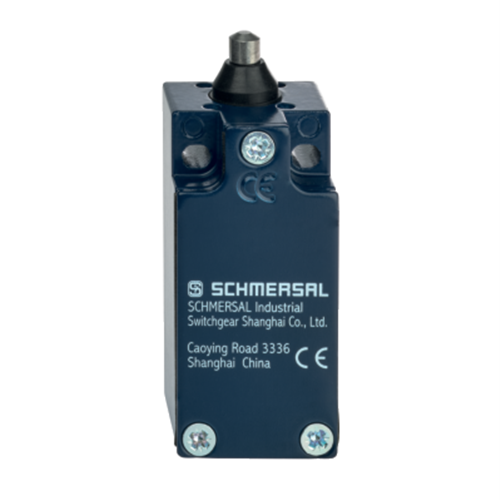

Schmersal 151164340 Position Switch with Safety Function

Product Code: 151164340

  • Quick action mechanism for fast response
  • Rated current capacity of 10 A
  • High protection with IP65, IP67 ratings
  • Durable design for industrial environments
In Stock Low Stock Out Of Stock Please See Attributes
1

Specifications

General

Product Type
Position Switch
Brand
Schmersal

Electrical

No. of N/C Contacts
1
No. of N/O Contacts
1
Rated Insulation Voltage (Ui)
500V
Terminal Type
Screw terminals
Thermal Test Current
10A

Mechanical

Actuator Type
Plunger
Housing Material
Metal, zinc die-cast

Dimensions & Physical Data

Depth
30mm
Height
75.5mm
Weight
0.149kg
Width
30mm

Environmental

IP Rating
IP65,IP67
Ambient Temperature
-30°C to 80°C
