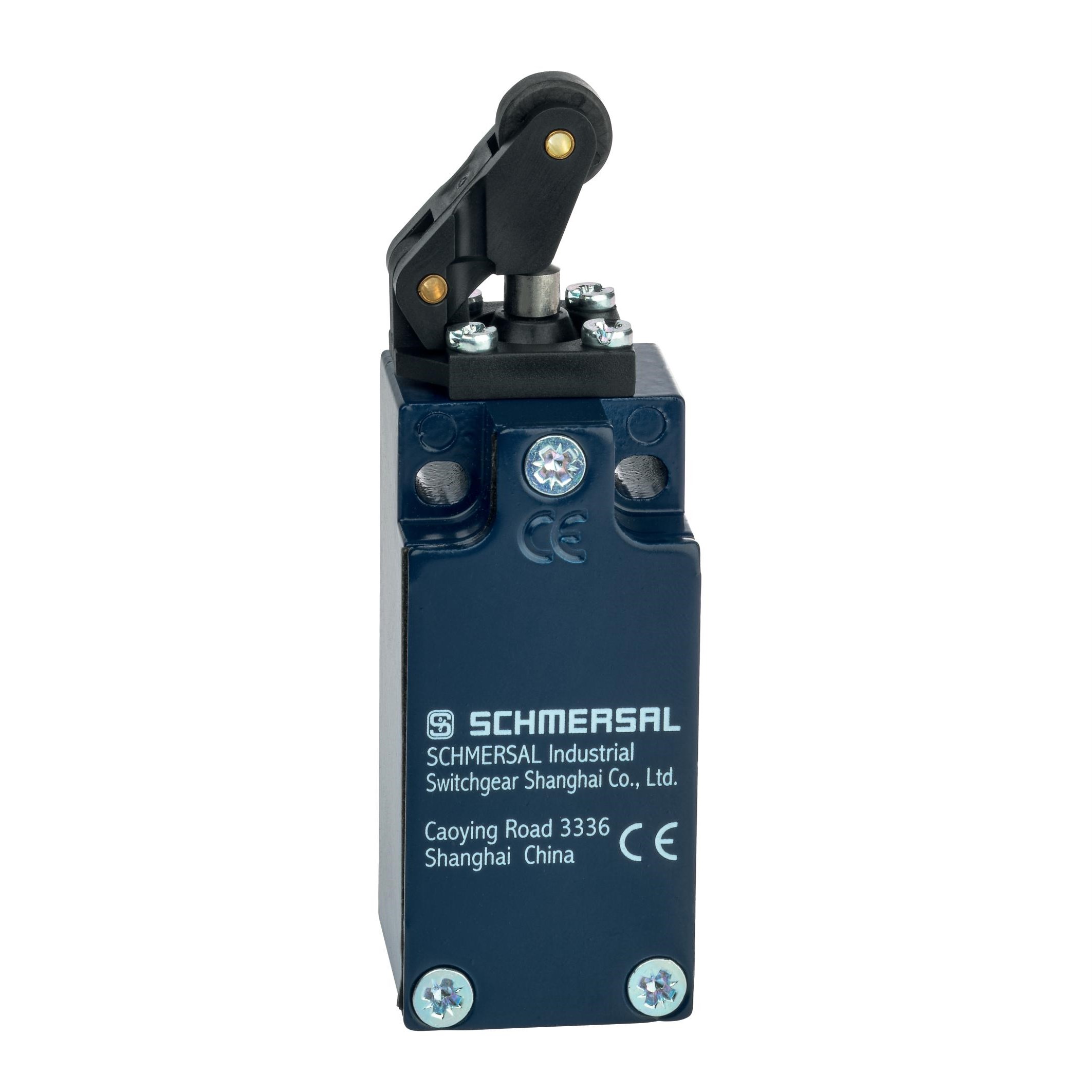

Schmersal 151164307 Position Switch with Safety Function 230VAC, 24VDC 1NO+1NC

Product Code: 151164307

  • Durable metal, die-cast zinc housing
  • High protection with IP67 rating
  • Long mechanical life: 20 million cycles
  • Wide temp range: -30 to 80°C
  • Complies with EN ISO 13849-1 standards
In Stock Low Stock Out Of Stock Please See Attributes
1

Specifications

General

Product Type
Position Switch
Brand
Schmersal

Electrical

No. of N/C Contacts
1
No. of N/O Contacts
1
Rated Insulation Voltage (Ui)
500V
Terminal Type
Screw terminals
Thermal Test Current
10A

Mechanical

Actuator Type
Offset roller lever
Housing Material
Metal, zinc die-cast

Dimensions & Physical Data

Depth
30mm
Height
95.1mm
Weight
0.153kg
Width
30mm

Environmental

IP Rating
IP65,IP67
Ambient Temperature
-30°C to 80°C
