Products

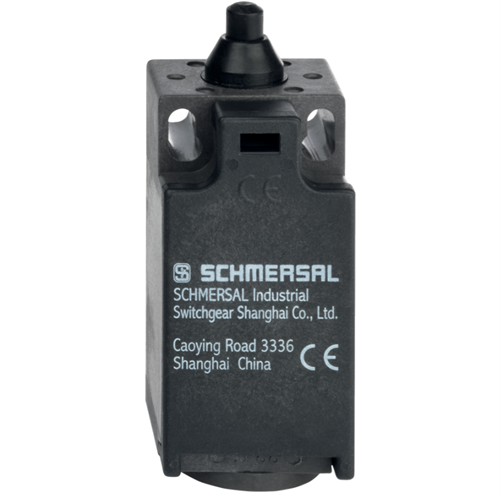

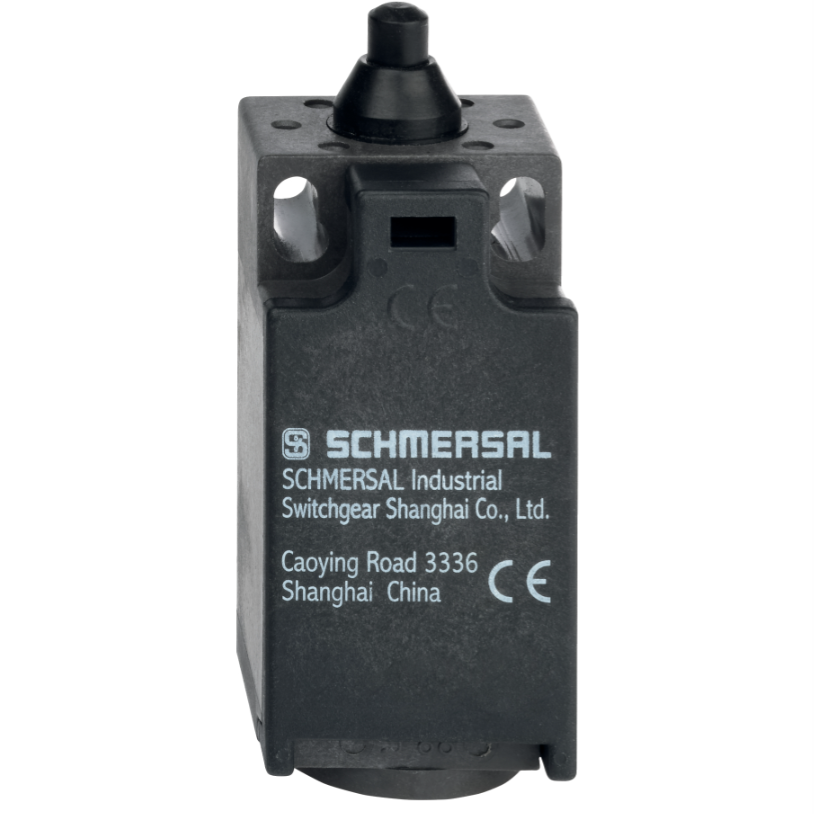

Schmersal 151162529 Position switch

Product Code: 151162529

  • Durable glass fibre reinforced thermoplastic housing
  • IP65/IP67 protection for harsh environments
  • Operates in temperatures from -30 to 80°C
  • Complies with EN IEC 60947-5-1, EN ISO 13849-1
  • Snap action mechanism with silver contacts
In Stock Low Stock Out Of Stock Please See Attributes
1

Specifications

General

Product Type
Position Switch
Brand
Schmersal

Electrical

No. of N/C Contacts
2
Terminal Type
Screw terminals
Thermal Test Current
10A

Mechanical

Actuator Type
Plunger
Housing Material
Plastic, glass-fibre reinforced thermoplastic, self-extinguishing

Dimensions & Physical Data

Depth
30mm
Height
73.5mm
Weight
0.065kg
Width
30mm

Environmental

IP Rating
IP65,IP67
Ambient Temperature
-30°C to 80°C

Documents

IPD Product Catalogue V17
