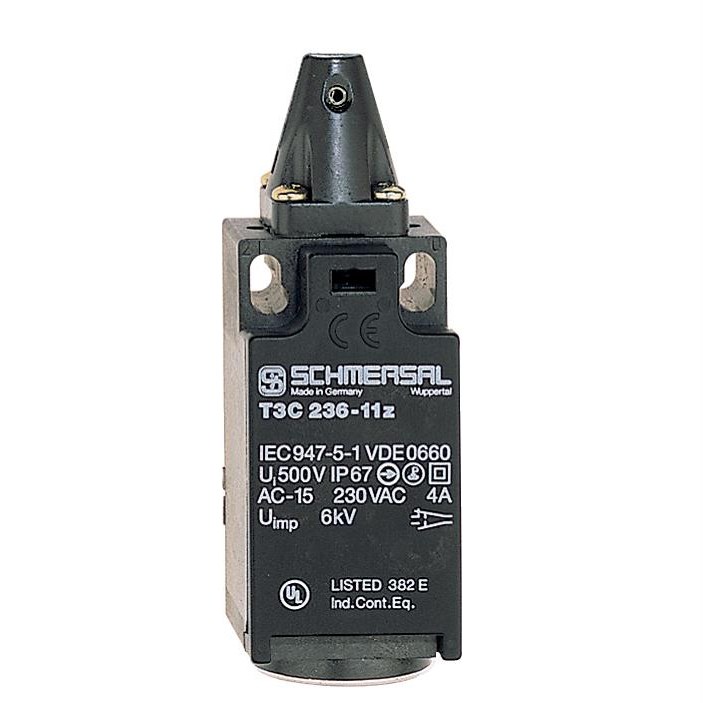

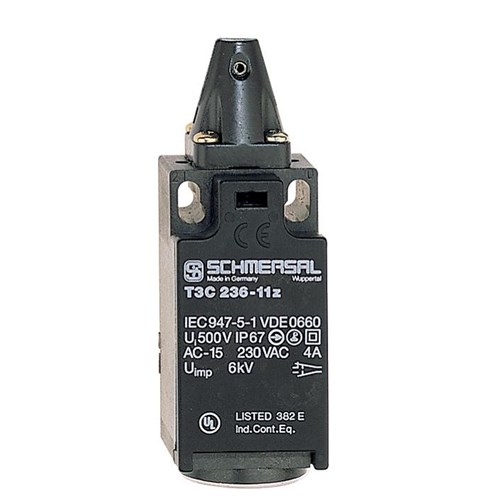

Schmersal 151162012 Flap Safety Switch 230VAC, 24VDC 1NO+1NC

Product Code: 151162012

  • Dual voltage: 230 VAC, 24 VDC
  • Contact config: 1NO+1NC
  • Durable with 1M mechanical cycles
  • High protection: IP67 rated
  • Wide temp range: -30 to 80°C
In Stock Low Stock Out Of Stock Please See Attributes
1

Specifications

General

Product Type
Position Switch
Brand
Schmersal

Electrical

No. of N/C Contacts
1
No. of N/O Contacts
1
Rated Insulation Voltage (Ui)
500V
Terminal Type
Screw terminals
Thermal Test Current
10A

Mechanical

Actuator Type
Swivel lever
Housing Material
Plastic, glass-fibre reinforced thermoplastic, self-extinguishing

Dimensions & Physical Data

Depth
30mm
Height
94.5mm
Weight
0.093kg
Width
93mm

Environmental

IP Rating
IP67
Ambient Temperature
-30°C to 80°C

Documents

IPD Product Catalogue V17
