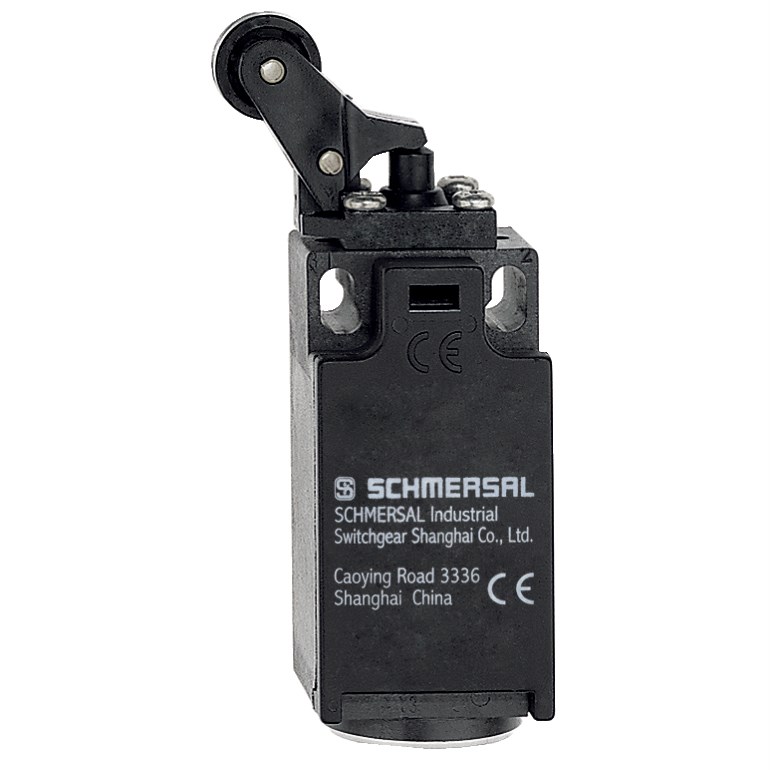

Schmersal 151161687 Position Switch with Safety Function 230VAC 1NO+1NC

Product Code: 151161687

  • Rated for 230 VAC, 4 A
  • IP65/IP67 protection rating
  • Durable 20 million cycles lifespan
  • Operates from -30 to 80°C
  • Angle roller lever actuator
In Stock Low Stock Out Of Stock Please See Attributes
1

Specifications

General

Product Type
Position Switch
Brand
Schmersal

Electrical

No. of N/C Contacts
1
No. of N/O Contacts
1
Rated Insulation Voltage (Ui)
500V
Terminal Type
Screw terminals
Thermal Test Current
10A

Mechanical

Actuator Type
Angle roller lever
Housing Material
Plastic, glass-fibre reinforced

Dimensions & Physical Data

Depth
30mm
Height
91.5mm
Weight
0.06kg
Width
35mm

Environmental

IP Rating
IP65,IP67
Ambient Temperature
-30°C to 80°C

Documents

IPD Product Catalogue V17
