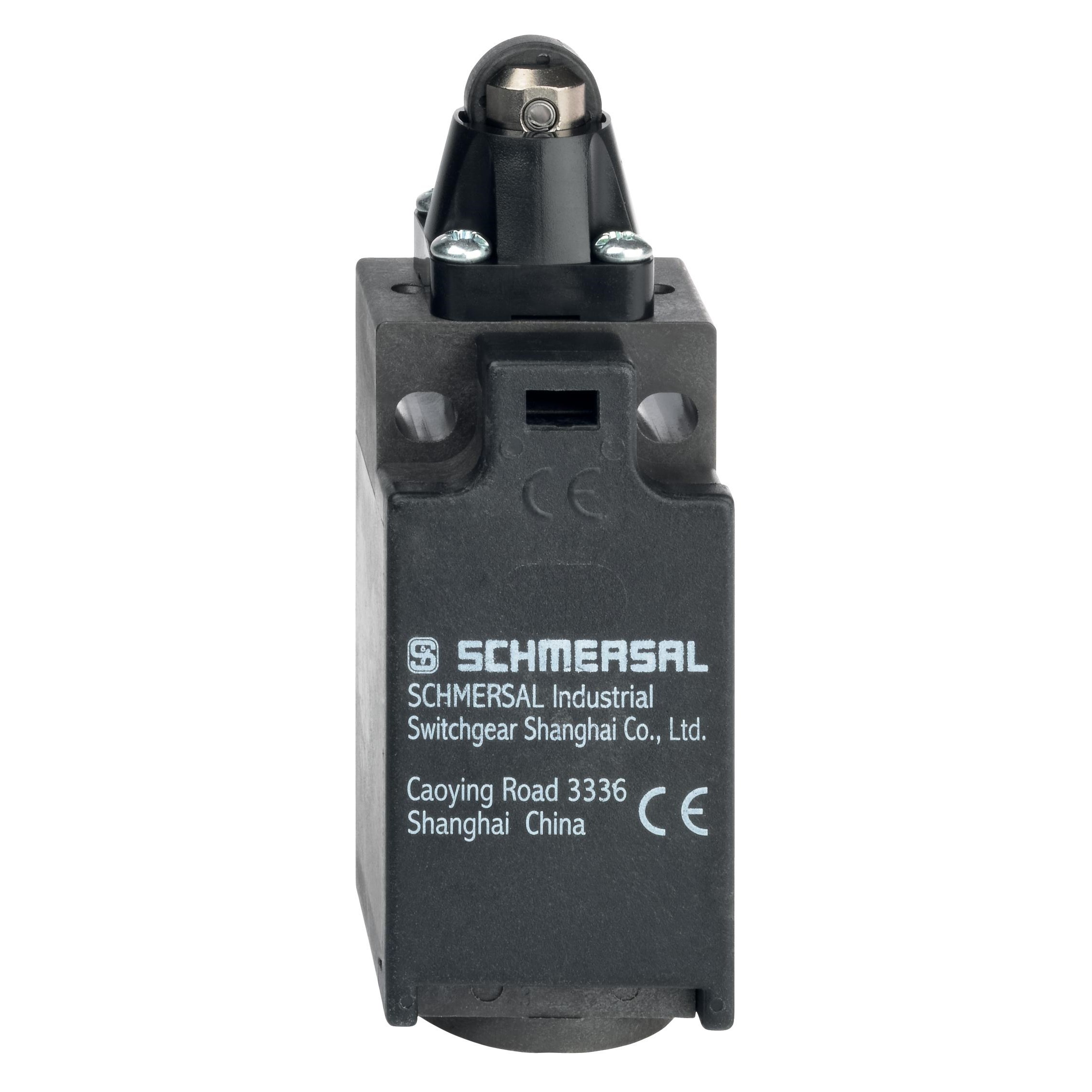

Schmersal 151161682 Position Switch with Safety Function 230VAC, 24VDC NC

Product Code: 151161682

  • Dual voltage: 230 VAC, 24 VDC
  • High durability: 20 million cycles
  • IP67 protection for harsh environments
  • Wide temp range: -30 to 80°C
  • Complies with EN IEC and ISO standards
In Stock Low Stock Out Of Stock Please See Attributes
1

Specifications

General

Product Type
Position Switch
Brand
Schmersal
Series
ZR 236

Electrical

No. of N/C Contacts
2
No. of N/O Contacts
0
Rated Current (In)
4A, 1A
Rated Voltage (Ur)
230V AC, 24V DC
Terminal Type
Screw terminals

Mechanical

Actuator Type
Roller plunger, Type C (EN 50047)
Housing Material
Plastic, glass-fibre-reinforced

Dimensions & Physical Data

Depth
30mm
Height
84mm
Weight
0.057kg
Width
30mm

Environmental

Operating Temperature
-40°C to 80°C
IP Rating
IP65, IP67
