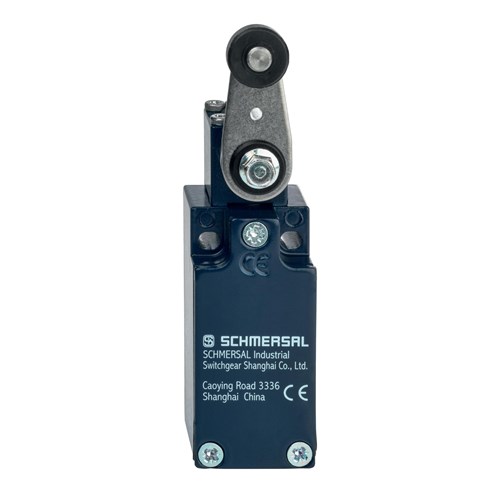

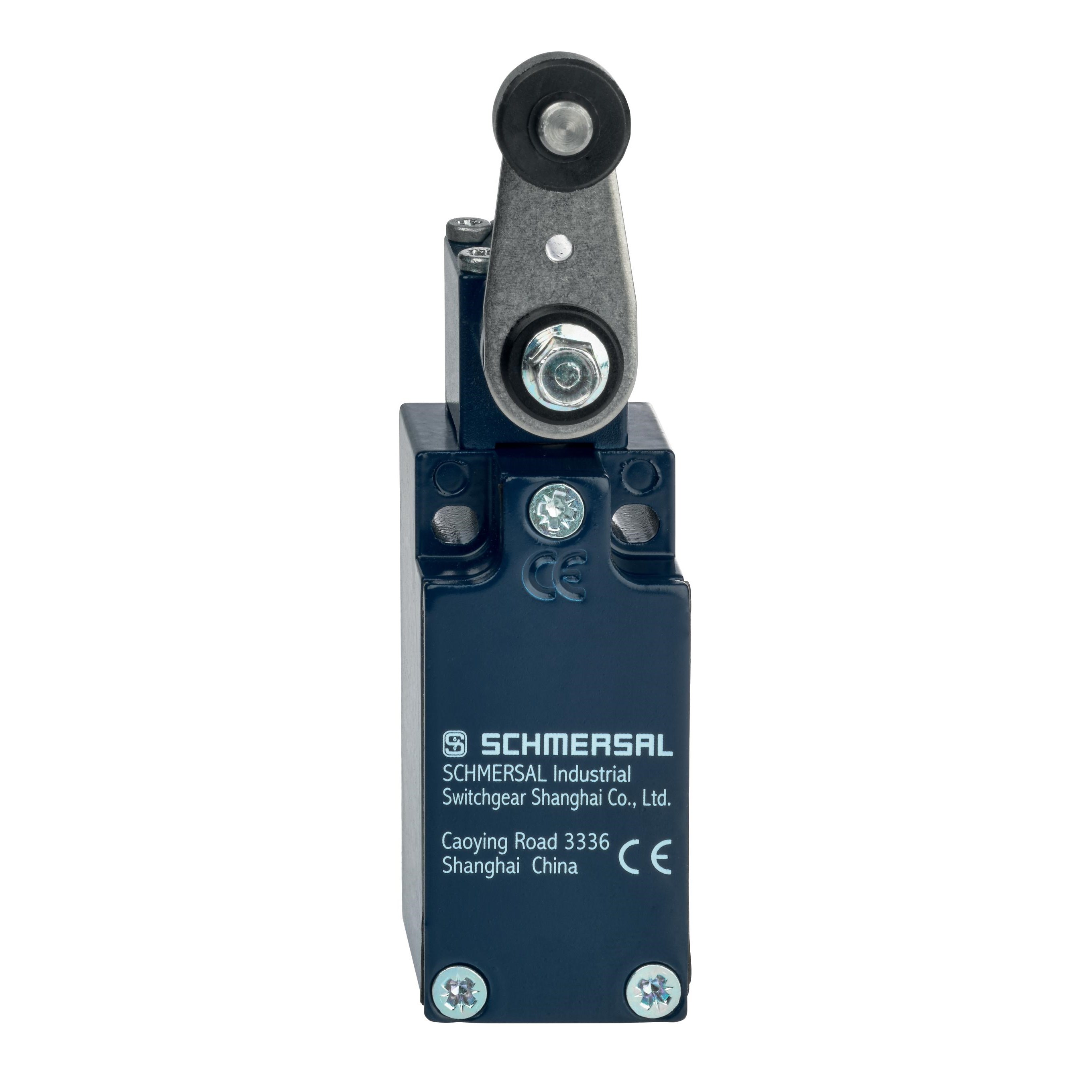

Schmersal 151161649 Position Switch with Safety Function 230VAC, 24VDC 1NO+1NC

Product Code: 151161649

  • Dual voltage: 230 VAC & 24 VDC
  • High durability: 20M mechanical cycles
  • Robust IP67 zinc housing
  • Operates in -30 to 80°C range
  • Complies with EN IEC standards
In Stock Low Stock Out Of Stock Please See Attributes
1

Specifications

General

Product Type
Position Switch
Brand
Schmersal

Electrical

No. of N/C Contacts
1
No. of N/O Contacts
1
Rated Insulation Voltage (Ui)
500V
Terminal Type
Screw terminals
Thermal Test Current
10A

Mechanical

Actuator Type
Roller lever
Housing Material
Metal, zinc die-cast

Dimensions & Physical Data

Depth
46mm
Height
114mm
Weight
0.207kg
Width
30mm

Environmental

IP Rating
IP65,IP67
Ambient Temperature
-30°C to 80°C

Documents

IPD Product Catalogue V17
