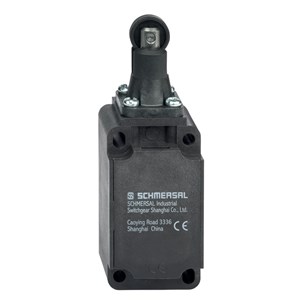

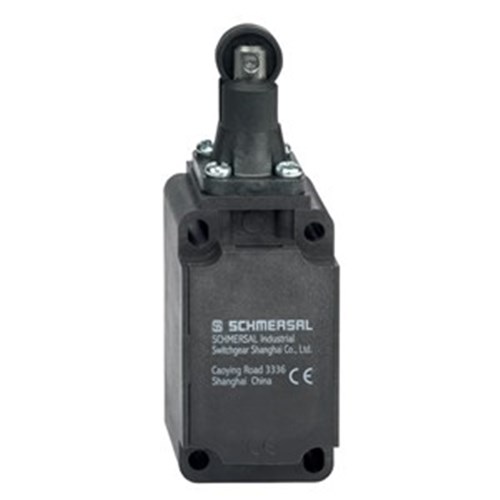

Schmersal 151160605 Position Switch with Safety Function

Product Code: 151160605

  • IP65/IP67 protection for harsh environments
  • Operates in -30 to 80°C temperature range
  • Complies with BG-GS, EN IEC, and ISO standards
  • Slow action mechanism for precise control
  • Silver contact material ensures reliable performance
In Stock Low Stock Out Of Stock Please See Attributes
1

Specifications

General

Product Type
Position Switch
Brand
Schmersal

Electrical

No. of N/C Contacts
1
No. of N/O Contacts
1
Rated Insulation Voltage (Ui)
500V
Terminal Type
Screw terminals
Thermal Test Current
10A

Mechanical

Actuator Type
Roller plunger
Housing Material
Plastic, glass-fibre reinforced

Dimensions & Physical Data

Depth
38mm
Height
116.5mm
Weight
0.129kg
Width
40.5mm

Environmental

IP Rating
IP65,IP67
Ambient Temperature
-30°C to 80°C

Documents

IPD Product Catalogue V17
