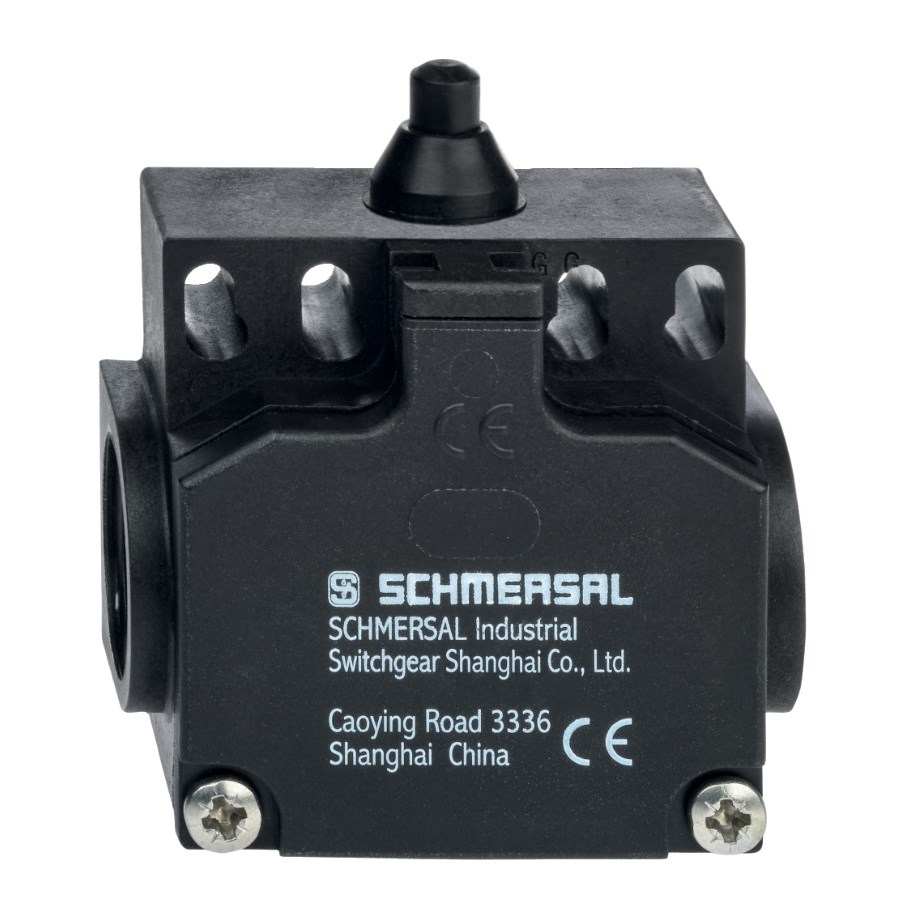

Schmersal 151160536 Position Switch with Safety Function 230VAC 1NO+1NC

Product Code: 151160536

  • Operates at 230 VAC and 4 A
  • Durable with 20 million mechanical cycles
  • IP65, IP67 protection for harsh environments
  • Wide temp range: -30 to 80°C
  • Compact size: 31x58x62.5 mm
In Stock Low Stock Out Of Stock Please See Attributes
1

Specifications

General

Product Type
Position Switch
Brand
Schmersal

Electrical

No. of N/C Contacts
1
No. of N/O Contacts
1
Rated Insulation Voltage (Ui)
500V
Terminal Type
Screw terminals
Thermal Test Current
10A

Mechanical

Actuator Type
Plunger
Housing Material
Plastic, glass-fibre reinforced

Dimensions & Physical Data

Depth
31mm
Height
62.5mm
Weight
0.07kg
Width
58mm

Environmental

IP Rating
IP65,IP67
Ambient Temperature
-30°C to 80°C

Documents

IPD Product Catalogue V17
