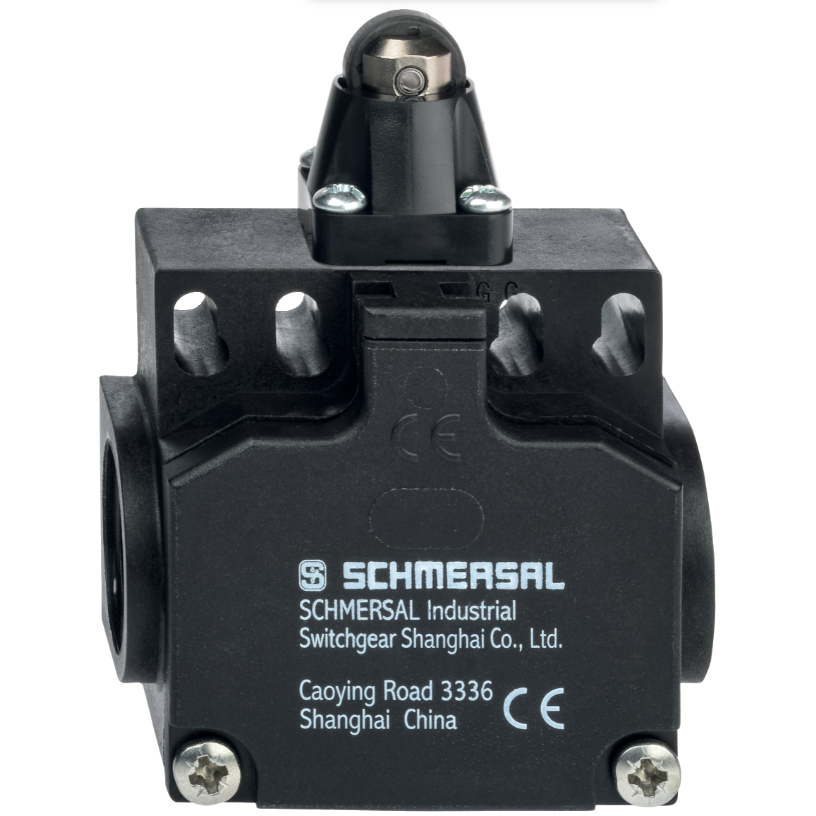

Schmersal 151160535 Roller Plunger Limit Switch Plunger Plastic Glass Fibre Reinforced Thermoplastic Silver Contact

Product Code: 151160535

  • Rated for 10A current handling
  • Durable glass fibre reinforced thermoplastic housing
  • High protection: IP65, IP67 rated
  • Complies with EN ISO 13849-1 standards
  • Silver contact material for reliability
In Stock Low Stock Out Of Stock Please See Attributes
1

Specifications

General

Product Type
Position Switch
Brand
Schmersal
Series
236

Electrical

No. of N/C Contacts
1
No. of N/O Contacts
1
Rated Insulation Voltage (Ui)
500V
Rated Current (In)
4A (AC-15)
Rated Voltage (Ur)
230V AC (AC-15)
Terminal Type
Screw
Thermal Test Current
10A

Mechanical

Actuator Type
Roller Plunger
Contact Material
Silver
Housing Material
Plastic, glass-fibre-reinforced

Dimensions & Physical Data

Depth
31mm
Height
67mm
Weight
0.088kg
Width
58mm

Environmental

IP Rating
IP65, IP67
Ambient Temperature
-40°C to 80°C
