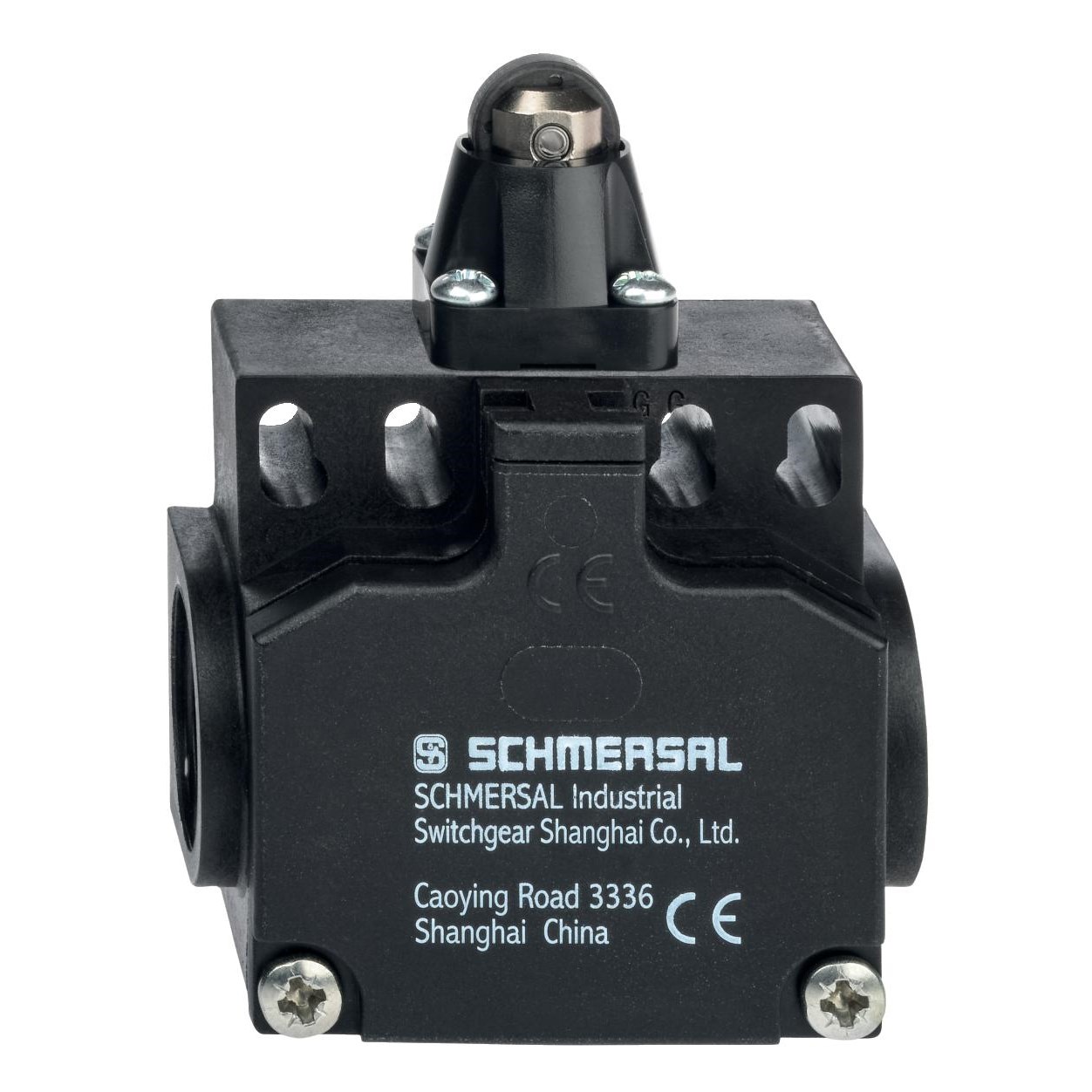

Schmersal 151160533 Position Switch with Safety Function 230VAC, 24VDC 1NO+1NC

Product Code: 151160533

  • Rated for 230VAC/24VDC, 4A/1A
  • Durable with 20 million cycles
  • IP67 protection rating
  • Operates from -30 to 80°C
  • Roller plunger actuator
In Stock Low Stock Out Of Stock Please See Attributes
1

Specifications

General

Product Type
Position Switch
Brand
Schmersal

Electrical

No. of N/C Contacts
1
No. of N/O Contacts
1
Rated Insulation Voltage (Ui)
500V
Terminal Type
Screw terminals
Thermal Test Current
10A

Mechanical

Actuator Type
Roller plunger
Housing Material
Plastic, glass-fibre reinforced

Dimensions & Physical Data

Depth
31mm
Height
67mm
Weight
0.077kg
Width
58mm

Environmental

IP Rating
IP65,IP67
Ambient Temperature
-30°C to 80°C

Documents

IPD Product Catalogue V17
