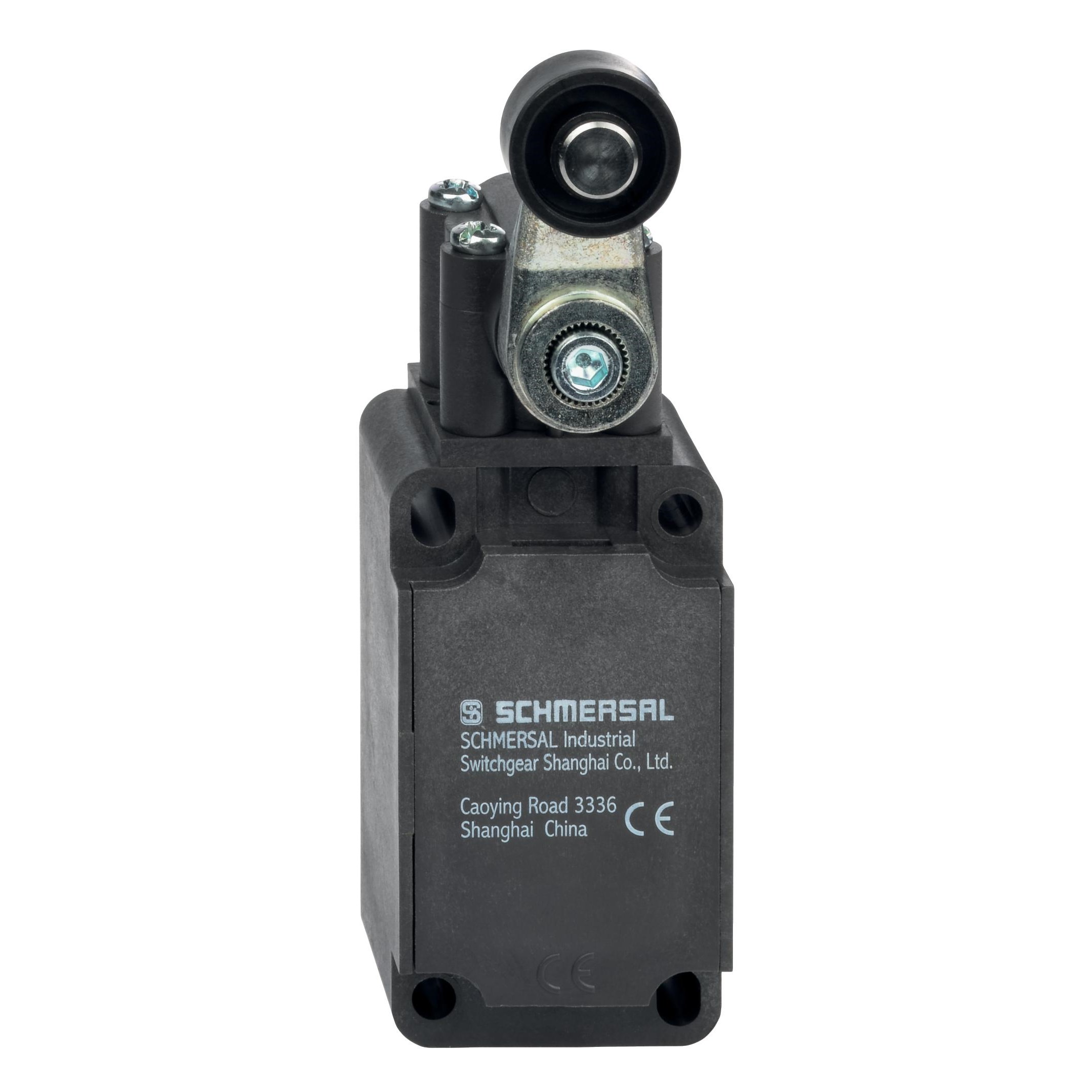

Schmersal 151158892 Position Switch with Safety Function 230VAC, 24VDC 1NO+1NC

Product Code: 151158892

  • Operates at 230 VAC or 24 VDC, 4 A
  • Durable with IP67 protection rating
  • Long mechanical life of 30 million cycles
  • Roller lever for actuation up to 2.5 m/s
  • Complies with EN ISO 13849-1 standards
In Stock Low Stock Out Of Stock Please See Attributes
1

Specifications

General

Product Type
Position Switch
Brand
Schmersal

Electrical

No. of N/C Contacts
1
No. of N/O Contacts
1
Rated Insulation Voltage (Ui)
500V
Terminal Type
Screw terminals
Thermal Test Current
10A

Mechanical

Actuator Type
Roller lever
Housing Material
Plastic, glass-fibre reinforced

Dimensions & Physical Data

Depth
60.5mm
Height
129.5mm
Weight
0.2kg
Width
40.5mm

Environmental

IP Rating
IP65,IP67
Ambient Temperature
-30°C to 80°C
