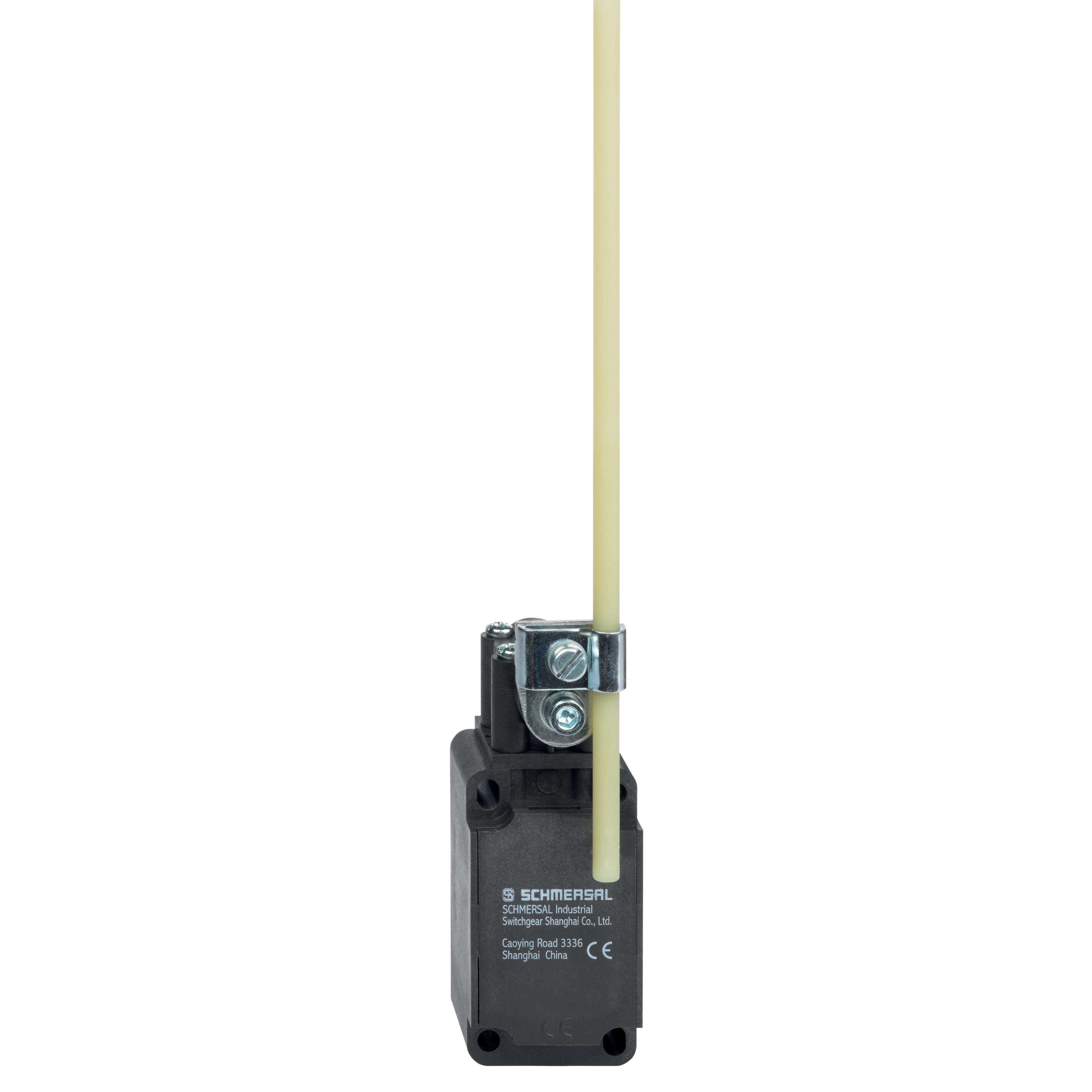

POSITION SWITCH M20X1.5 1NC 1NO ROD LEVER SCHMERSAL Z4V10H336-11Z-M20

Product Code: 151157105

  • Operates at 230 VAC or 24 VDC
  • Durable with 30M mechanical cycles
  • IP67 protection for harsh environments
  • Snap action with rod lever actuator
  • Compact size: 52mm x 40mm
In Stock Low Stock Out Of Stock Please See Attributes
1

Specifications

General

Product Type
Position Switch
Brand
Schmersal
Series
336

Electrical

No. of N/C Contacts
1
No. of N/O Contacts
1
Rated Current (In)
4A (Utilisation Cat AC-15)4A (Utilisation Cat DC-13)
Rated Voltage (Ur)
230 VAC (Utilisation Cat AC-15)24 VDC (Utilisation Cat DC-13)
Terminal Type
Screw terminals

Mechanical

Actuator Type
Rod lever
Contact Material
Silver
Housing Material
Plastic, glass-fibre-reinforced

Dimensions & Physical Data

Depth
52mm
Height
111.5mm (without rod)
Weight
0.165kg
Width
40.5mm

Environmental

Operating Temperature
-30°C to 80°C
IP Rating
IP65IP67
