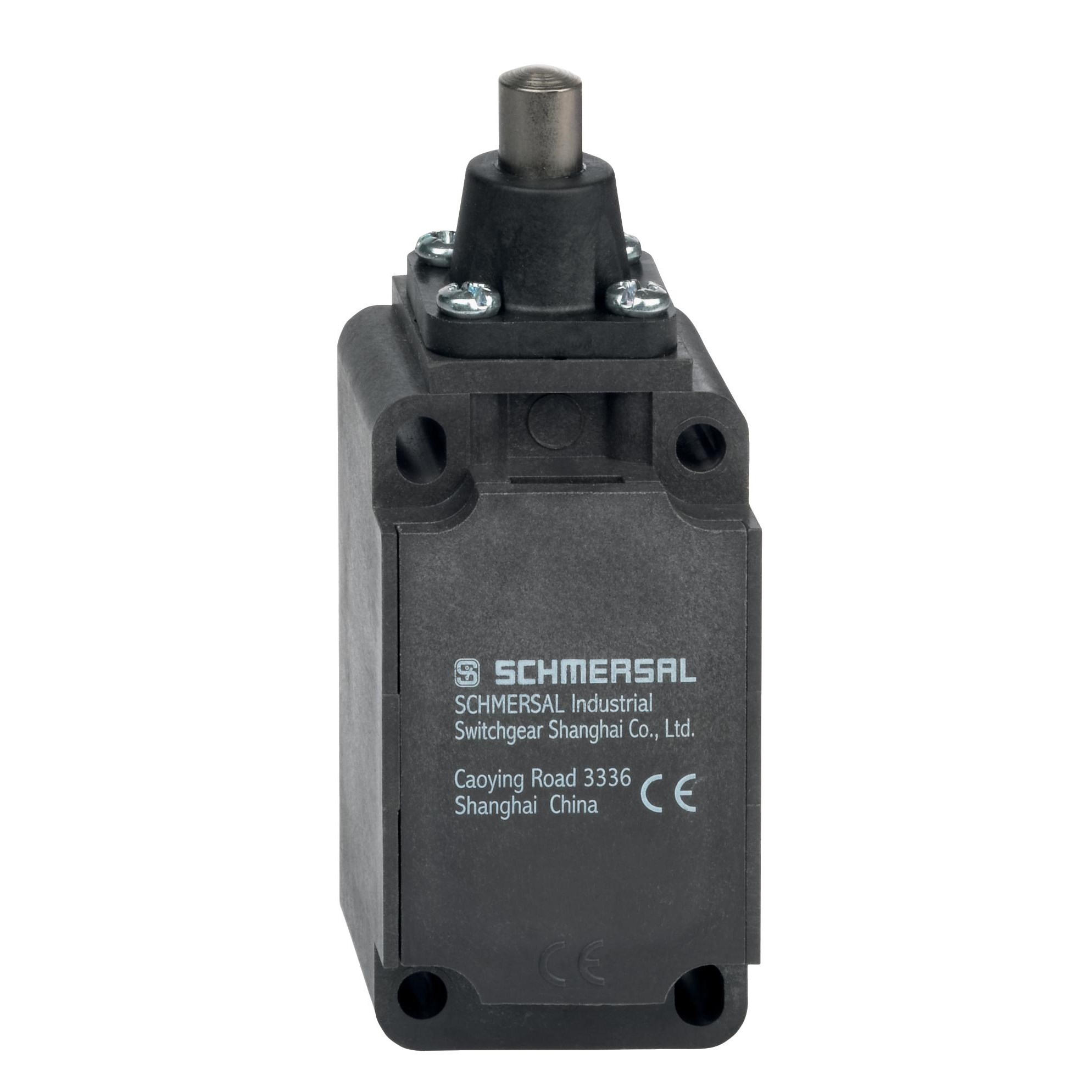

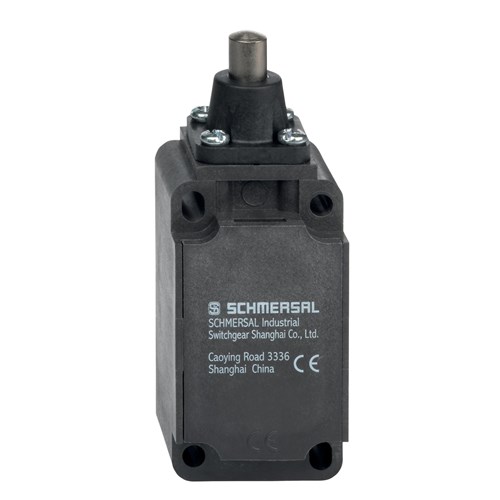

Schmersal 151156136 Position Switch with Safety Function 230VAC, 24VDC 1NO+1NC

Product Code: 151156136

  • Operates at 230 VAC or 24 VDC, 4 A
  • Durable with 30 million mechanical cycles
  • IP67 protection for harsh environments
  • Snap action with plunger actuator
  • Compact size: 38x40x103.5 mm
In Stock Low Stock Out Of Stock Please See Attributes
1

Specifications

General

Product Type
Position Switch
Brand
Schmersal

Electrical

No. of N/C Contacts
1
No. of N/O Contacts
1
Rated Insulation Voltage (Ui)
500V
Terminal Type
Screw terminals
Thermal Test Current
10A

Mechanical

Actuator Type
Plunger
Housing Material
Plastic, glass-fibre reinforced

Dimensions & Physical Data

Depth
38mm
Height
103.5mm
Weight
0.119kg
Width
40.5mm

Environmental

Ambient Temperature
-30°C to 80°C
