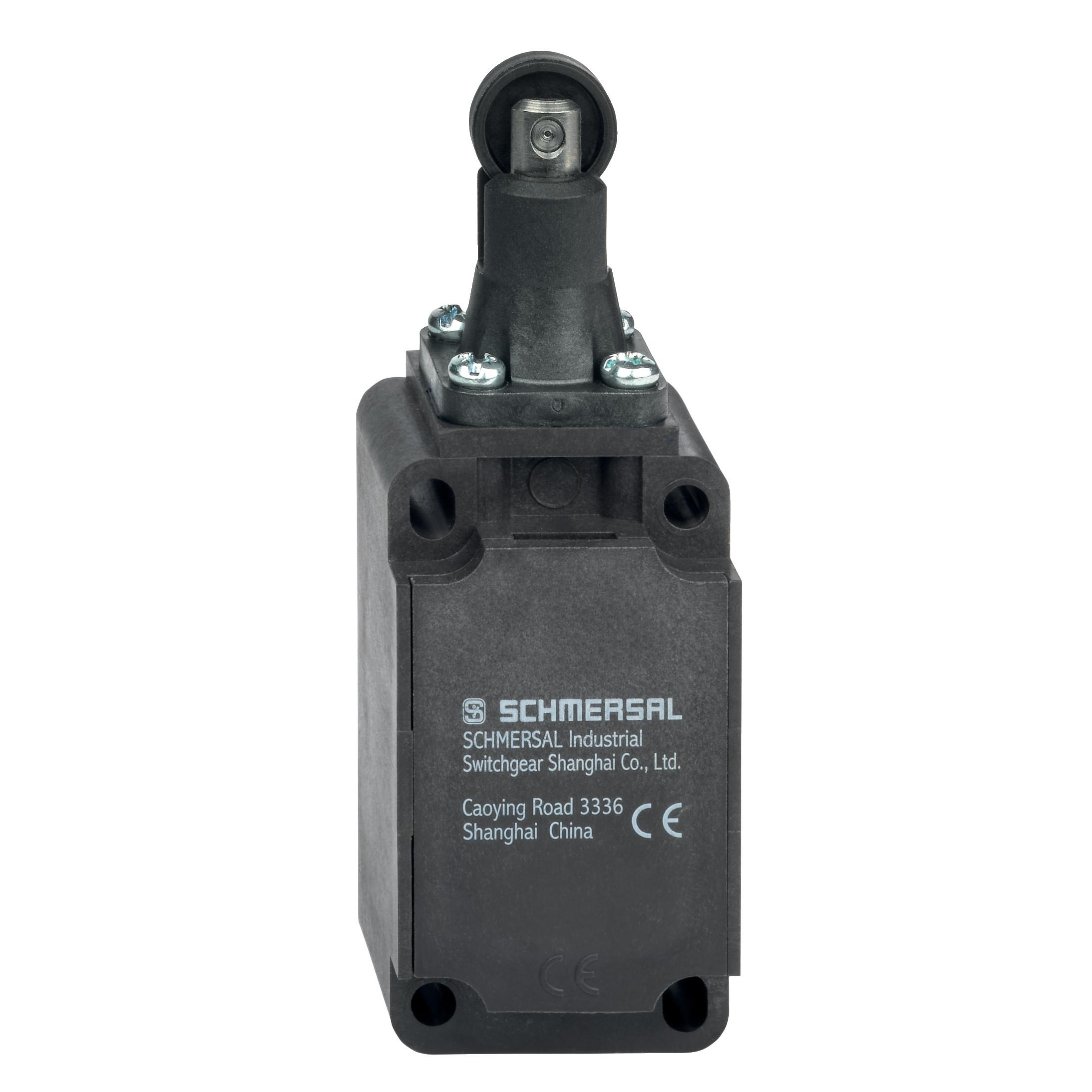

Schmersal 151156135 Position Switch with Safety Function 230VAC, 24VDC 1NO+1NC

Product Code: 151156135

  • Rated for 230 VAC, 24 VDC, 4 A
  • Durable with 30 million cycles lifespan
  • IP67 protection against dust and water
  • Operates in -30 to 80°C temperature range
  • Snap action with roller plunger actuator
In Stock Low Stock Out Of Stock Please See Attributes
1

Specifications

General

Product Type
Position Switch
Brand
Schmersal

Electrical

No. of N/C Contacts
1
No. of N/O Contacts
1
Rated Insulation Voltage (Ui)
500V
Terminal Type
Screw terminals
Thermal Test Current
10A

Mechanical

Actuator Type
Roller plunger
Housing Material
Plastic, glass-fibre reinforced

Dimensions & Physical Data

Depth
38mm
Height
116.5mm
Weight
0.131kg
Width
40.5mm

Environmental

IP Rating
IP65,IP67
Ambient Temperature
-30°C to 80°C

Documents

IPD Product Catalogue V17
