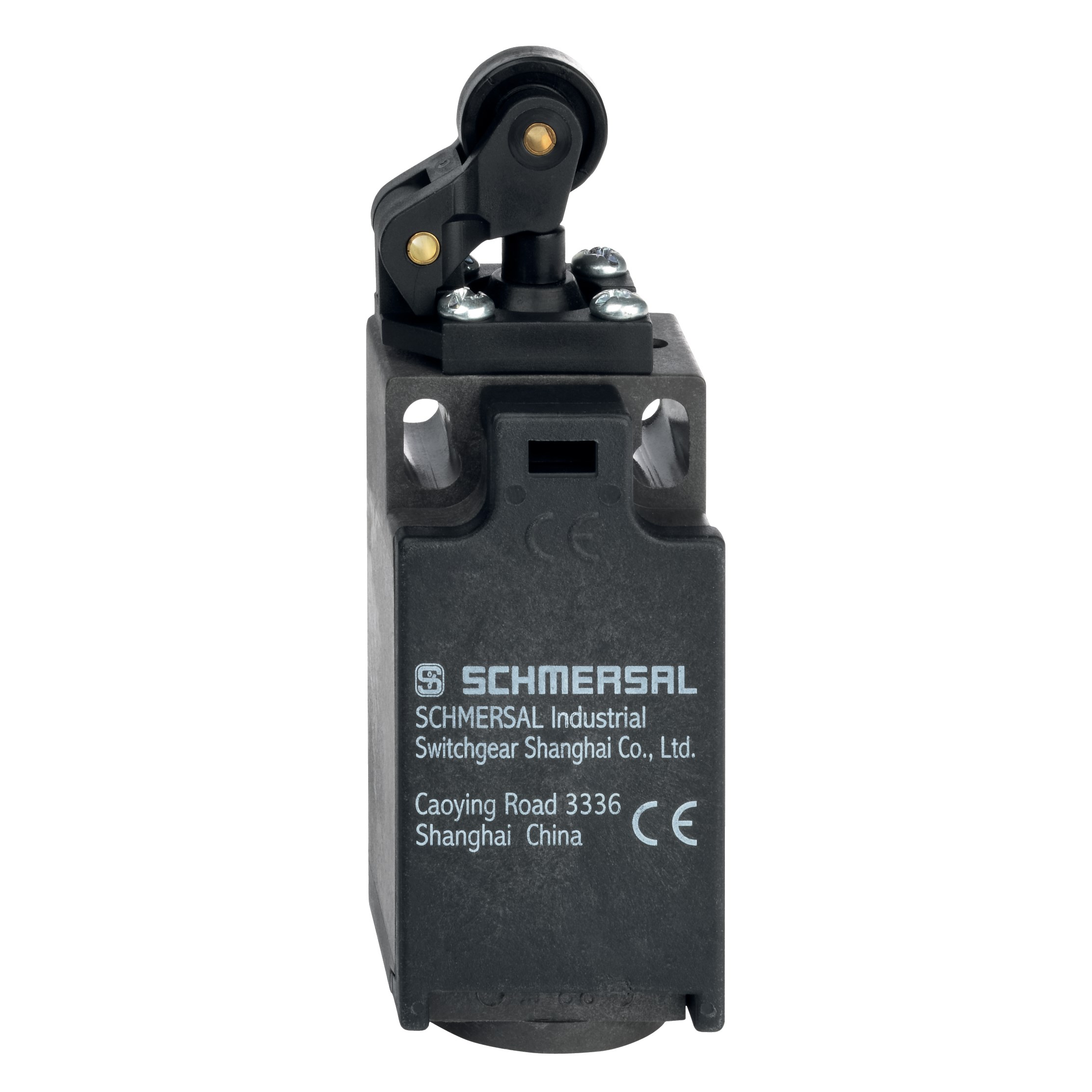

POSITION SWITCH THERMOPLASTIC ENCLOSURE 1NC 1NO SCHMERSAL Z1R 236-11Z-M20

Product Code: 151156129

  • Offset roller lever actuator for precise control
  • Durable thermoplastic housing
  • IP67 protection against dust and water
  • Operates in temps from -30 to 80°C
  • Complies with IEC 60947-5-1, ISO 13849-1
In Stock Low Stock Out Of Stock Please See Attributes
1

Specifications

General

Product Type
Position Switch
Brand
Schmersal
Series
236

Electrical

No. of N/C Contacts
1
No. of N/O Contacts
1
Rated Current (In)
4A (Utilisation Cat AC-15)1A (Utilisation Cat DC-13)
Rated Voltage (Ur)
230 VAC (Utilisation Cat AC-15)24 VDC (Utilisation Cat DC-13)
Terminal Type
Screw terminals

Mechanical

Actuator Type
Offset roller lever
Contact Material
Silver
Housing Material
Plastic, glass-fibre-reinforced

Dimensions & Physical Data

Depth
30mm
Height
89.5mm
Weight
0.056kg
Width
30mm

Environmental

Operating Temperature
-30°C to 80°C
IP Rating
IP65IP67
