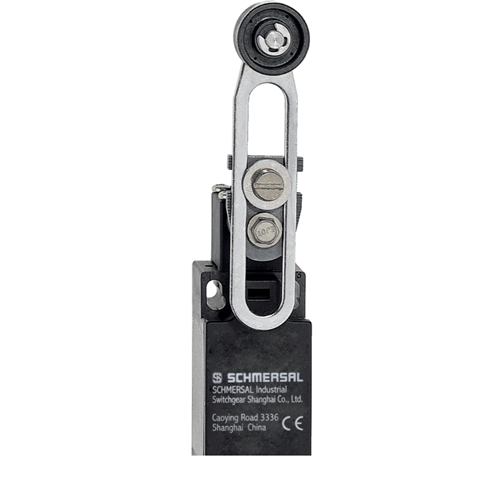

POSITION SWITCH ROLLER LEVER 1NC 1NO IP65 SCHMERSAL ZV7H 236-11Z-M20

Product Code: 151156069

  • 1NO+1NC contact config for versatile use
  • Durable plastic, glass fibre reinforced housing
  • High protection: IP65, IP67 rated
  • Operates in temps from -30 to 80°C
  • Complies with EN IEC 60947-5-1 standards
In Stock Low Stock Out Of Stock Please See Attributes
1

Specifications

General

Product Type
Position Switch
Brand
Schmersal
Series
236

Electrical

No. of N/C Contacts
1
No. of N/O Contacts
1
Rated Current (In)
4A (Utilisation Cat AC-15)1A (Utilisation Cat DC-13)
Rated Voltage (Ur)
230 VAC (Utilisation Cat AC-15)24 VDC (Utilisation Cat DC-13)
Terminal Type
Screw terminals

Mechanical

Actuator Type
Roller lever
Contact Material
Silver
Housing Material
Plastic, glass-fibre-reinforced

Dimensions & Physical Data

Depth
49mm
Height
158.5mm
Weight
0.095kg
Width
30mm

Environmental

Operating Temperature
-30°C to 80°C
IP Rating
IP65IP67
