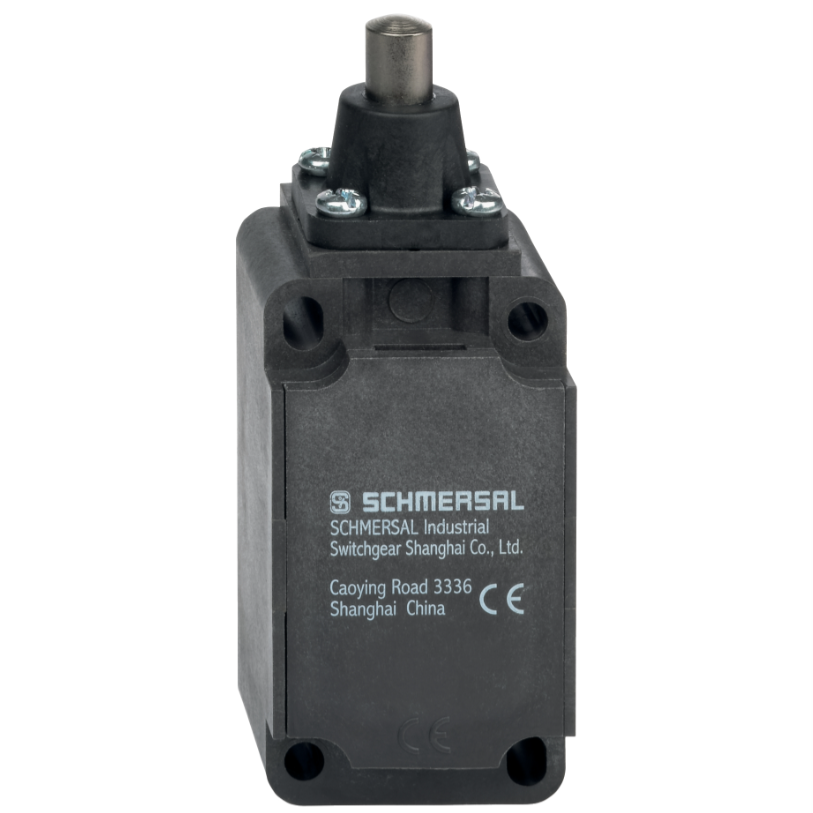

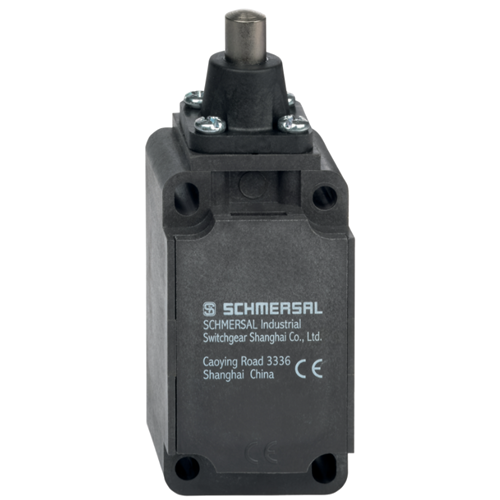

Schmersal 151155769 Plunger Limit Switch Plunger Plastic Glass Fibre Reinforced Thermoplastic Silver Contact

Product Code: 151155769

  • Rated for 10A current
  • Durable glass fibre reinforced plastic housing
  • IP65 & IP67 protection ratings
  • Complies with EN ISO 13849-1 standards
  • Slow action switching mechanism
In Stock Low Stock Out Of Stock Please See Attributes
1

Specifications

General

Product Type
Position Switch
Brand
Schmersal
Series
M 330 plunger S

Electrical

No. of N/C Contacts
1
No. of N/O Contacts
1
Rated Insulation Voltage (Ui)
500V
Rated Current (In)
4A (AC-15)
Rated Voltage (Ur)
230V AC (AC-15)
Terminal Type
Screw
Thermal Test Current
10A

Mechanical

Actuator Type
Plunger
Contact Material
Silver
Housing Material
Plastic, glass-fibre-reinforced

Dimensions & Physical Data

Depth
38mm
Height
103.5mm
Weight
0.128kg
Width
40.5mm

Environmental

IP Rating
IP65, IP67
Ambient Temperature
-40°C to 80°C

Documents

IPD Product Catalogue V17
